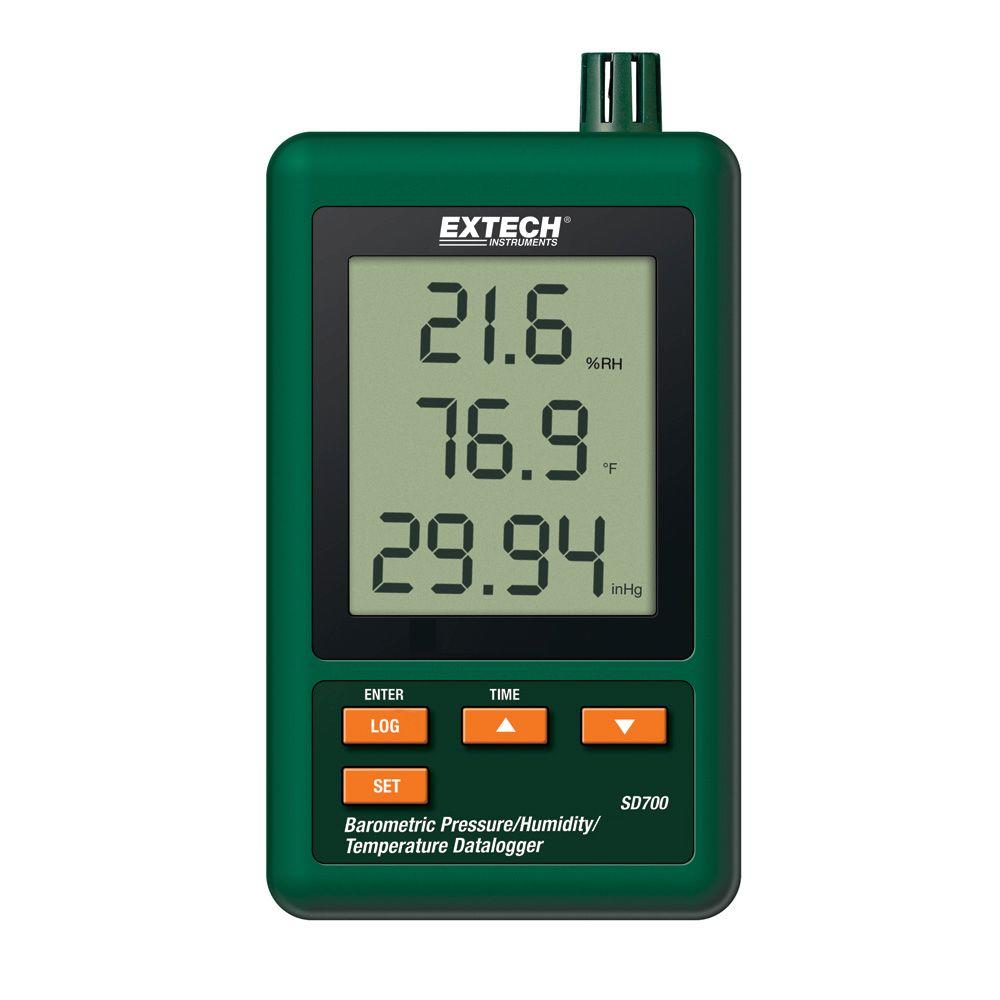

Extech SD700 Datalogger inregistrator Presiune barometrica, temperatura si umiditate

Cod: Extech SD700




Brosura produs PDF, 0.14 Mb

Descriere

Records data to SD card in Excel® format

SD700 records data to SD card in Excel format. Displays Barometric Pressure in 3 units of measure: hPa, mmHg, and inHg. Triple LCD simultaneously displays Barometric Pressure, Temperature, and Relative Humidity. Datalogger date/time stamps and stores readings on an SD card in Excel format for easy transfer to a PC. Selectable data sampling rate from 5, 10, 30, 60, 120, 300, 600 seconds. Complete with (6) AAA batteries, SD memory card, Universal AC adapter, and mounting bracket.



·         Displays Barometric Pressure in 3 units of measure: hPa, mmHg, and inHg

·         Triple LCD simultaneously displays Barometric Pressure, Temperature, and Relative Humidity

·         Datalogger date/time stamps and stores readings on an SD card in Excel® format for easy transfer to a PC

·         Selectable data sampling rate: 5, 10, 30, 60, 120, 300, 600 seconds

·         Complete with (6) AAA batteries, SD memory card, Universal AC adaptor, and mounting bracket
