Extech HD400 Luxmetru

Cod: Extech HD400




Brosura produs PDF, 0.21 Mb

Descriere

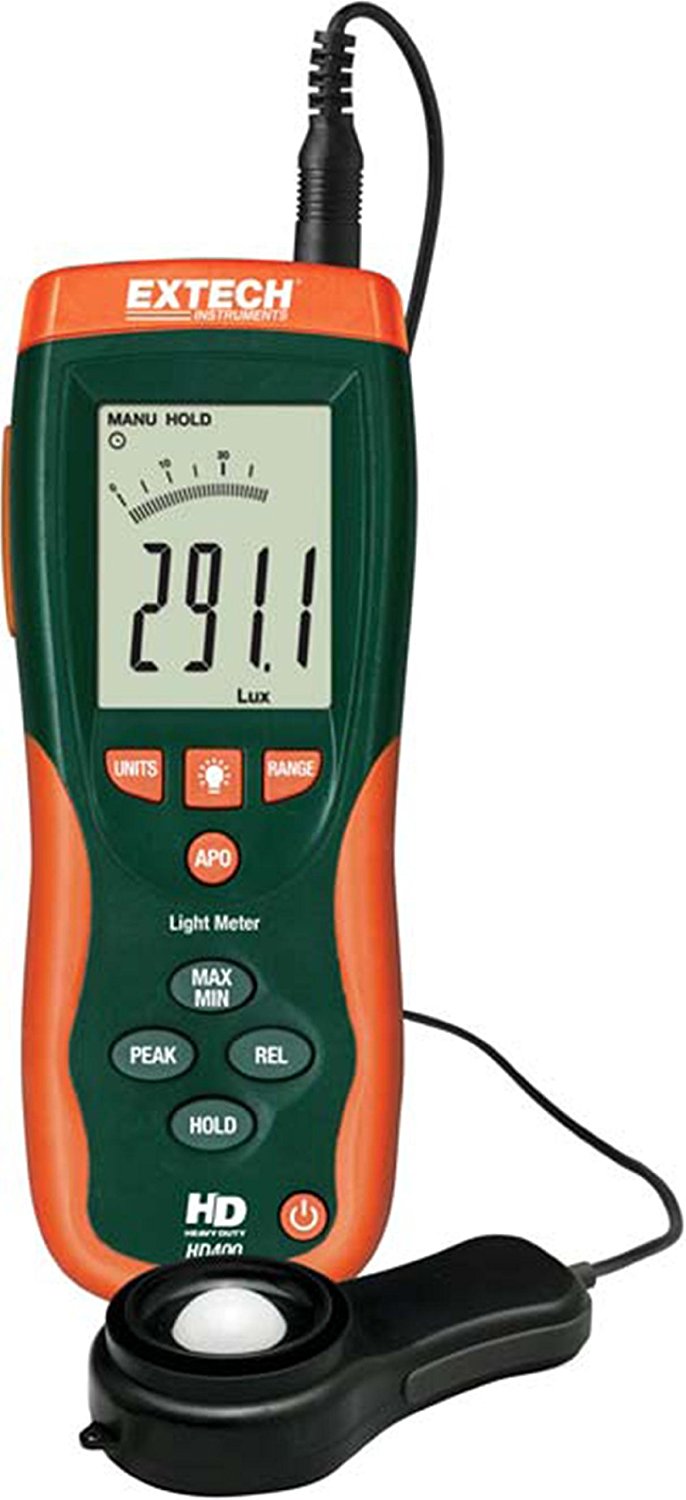

Light meter with double molded housing and large backlit display with 40-segment bar graph

The HD400 Light Meter measures from 0 to 40,000Fc and 0 to 400kLux in with 0.01Fc/0.1Lux resolution. It features: 5% accuracy, Peak mode (10µs), Relative mode, Min/Max, Data Hold, backlit LCD display with 40-segment bar graph, and a rugged double molded housing. Comes complete with light sensor with 3ft (1m) cable and protective cover, software with USB cable, hard carrying case, and 9-Volt battery.



Features:

·         Large backlit LCD display with 40-segment bar graph

·         Wide range to 40,000Fc or 400,000 Lux

·         Cosine and color corrected measurements

·         Utilizes precision silicon photo diode and spectral response filter

·         Peak mode (10mS) captures highest reading

·         Relative mode indicates change in light levels
