Dinamometru masurare forta EXTECH 475040

Cod: EXTECH 475040




Brosura produs PDF, 0.36 Mb

Descriere

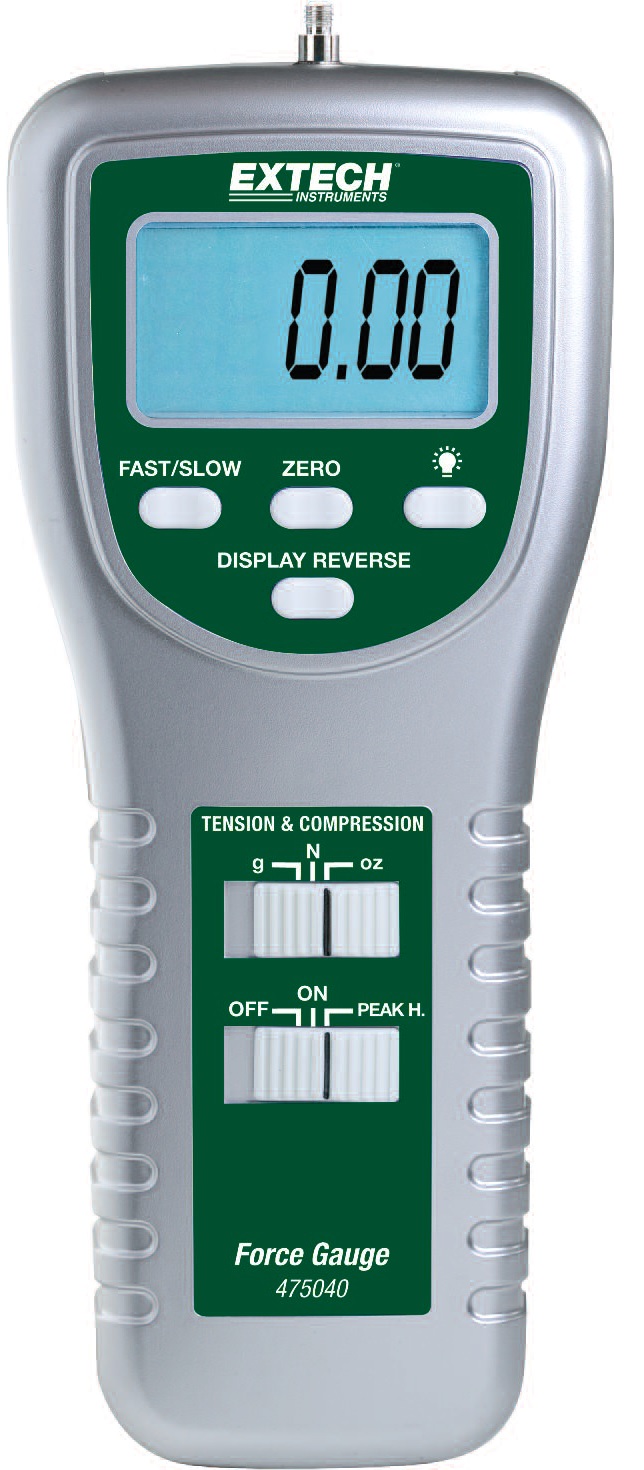

Extech 475040: Digital Force Gauge



Push/Pull measurements in kg, lbs, oz and Newton units with ±0.4% accuracy



475040 is a Digital Force Gauge with a 5 digit LCD display and peak hold. Exclusive load cell measurement transducer. Over range, low battery and advanced function indicator. 5kg/176oz/49 Newtons measurement capacity. Basic accuracy of 0.4-percent.



Complete with tension rod, carrying case and 4 adapters (flathead, cone, chisel and hook for tension), and 6 AA batteries.





  • Range: 176 oz, 5000g, 49 Newtons (±0.4% accuracy)
  • Ideal for a wide variety of applications in the electronics, automotive, chemical, plastics and machinery industries
  • Reversible display and fast/slow response mode
  • Exclusive load cell measurement transducer
  • Overrange, low battery and advanced function indication
  • Zero Adjust push-button and Peak Hold switch
  • Complete with hook adaptor for tension/compression adaptors, 5" extension rod, 6 AA batteries and carrying case





Specifications

Range

Range

176oz, 5000g, 49 Newtons

Basic Accuracy (23°C)

±(0.4%)

Resolution

0.05oz, 1g, 0.01 Newtons

Overload capacity

10kg

Update Rate

Fast mode 0.2secs; Slow mode 0.6secs

Full scale deflection

2.00mm

Transducer type

Load cell

Dimensions/ Weight

8.5x3.5x1.8" (215x90x45mm)/ 1.4 lbs (650g)
