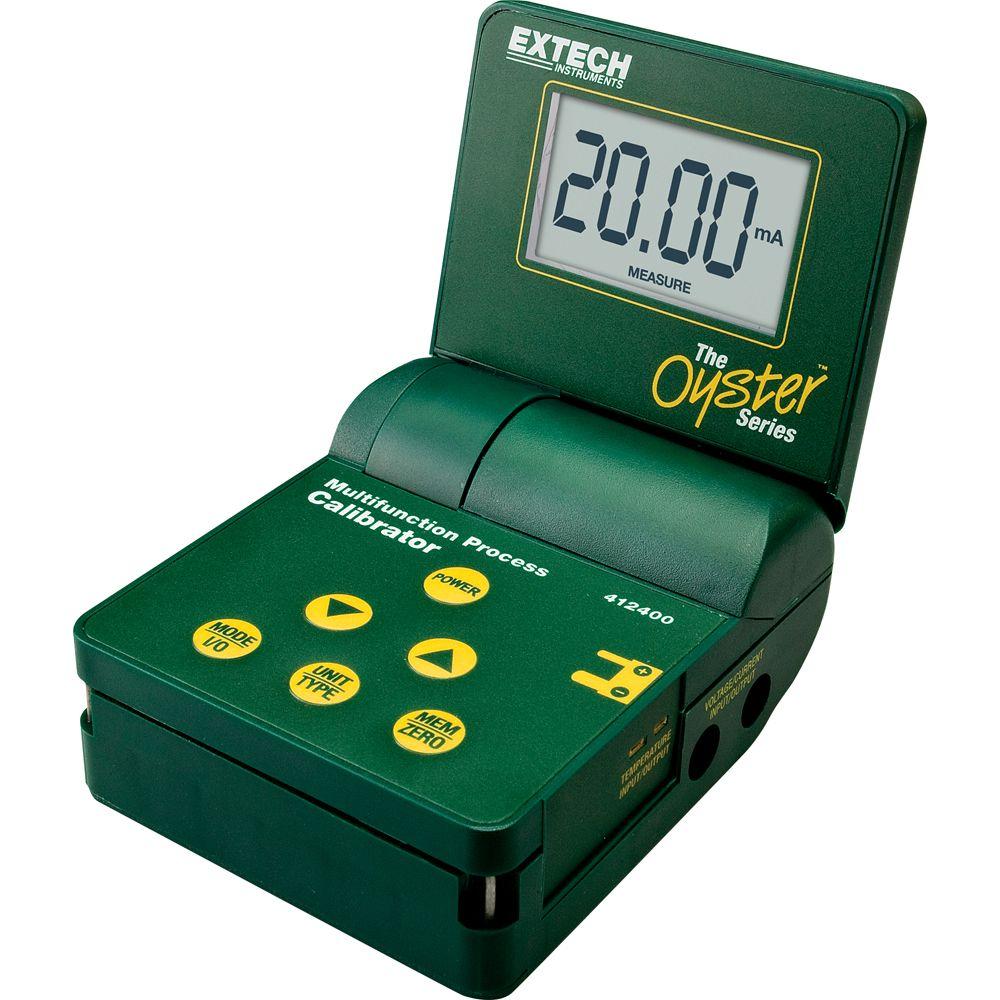

Extech 412400: Multifunction Process Calibrator

Cod: Extech 412400




Brosura produs PDF, 0.21 Mb

Descriere

Precision source and measure for thermocouple, mA, mV, and V devices



412400 Multifunction Process Calibrator sources and measures Thermocouples (J, K, and T), mA, mV, and V devices. The 24V Loop Supply drives current loads up to 1000 ohms. Memory for 5 user settable output values of each type for fast calibrations. Single/continuous step function for Voltage and Current. Comes complete with six AA batteries and calibration cable with spade lug terminals.



·         Source 0 to 24mA with 0.01mA resolution

·         Measure 0 to 50mA (0.1mA resolution)

·         Select Type K, J, or T thermocouple for precision calibrations in °F/°C or mV

·         Output 0 to 1999mV or 0 to 10.00V

·         Measure 0 to 19.99V

·         Single/continuous step function for Voltage and Current

·         Self-contained 24V loop power supply drives current loads up to 1000Ohm

·         5 stored calibration values of each type for fast calibrations

·         Complete with six AA batteries and calibration cable with spade lug terminals



Alte produse EXTECH

EXTECH LT300 LUXMETRU

• Wide range to 40,000Fc or 400,000 Lux with max resolution to 0.01 Fc/Lux
• Relative mode indicates change in light levels, peak mode captures highest reading
• Remote light sensor on 12" (30.5cm) coiled cable - expandable to 24" (61cm)
• Utilizes precision photo diode and color correction filter
• Large LCD display with analog bargraph
• Backlight for readings in low light levels
• Complete with 9V battery, light sensor with protective cover, protective holster, and soft case



EXTECH EX530 MULTIMETRU DIGITAL PORTABIL INDUSTRIAL

• True RMS DMM with 11 functions and 0.06% basic accuracy
• AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode/Continuity
• Dual sensitivity frequency functions (electrical/electronic)
• 1000V input protection on all functions
• 20A max Current



EXTECH MO57 UMIDIMETRU FARA AC

• Pinless moisture measurement depth to <4" (100mm)
• Measures Moisture up to 99.9% for Wood and other building materials
• Displays moisture level in wood and building materials such as wall board, sheet rock, tiles, cardboard, plaster, concrete, and mortar
• Audible Alert - Tone rate beeps faster as the moisture level increases
• Icons display low, medium and high levels of moisture content



EXTECH HT30 TESTER NIVEL STRES TERMIC WBGT (WET BULB GLOBE TEMPERATURE) METER

• Heat Stress Index measures how hot it feels when humidity is combined with temperature, air movement, and radiant heat
• Black Globe Temperature (TG) monitors the effects of direct solarradiation on an exposed surface
• In/Out Function displays the WBGT value with or without direct sun exposure



EXTECH 380363 TESTER DIGITAL IZOLATIE REZISTENTA

• 250V, 500V and 1000V Test Voltages
• Measure Insulation Resistance to 10GOhm
• Large LCD display with analog bargraph
• Lo Ohm function for testing connections



EXTECH CT70 TESTER GFCI SI ANALIZOR CIRCUIT AC

• Selectable loads of 12, 15 and 20 Amps
• Measures loaded and unloaded AC Line Voltage
• Calculates and displays % Voltage Drop and Line Impedance
• Displays Peak Line Voltage and Frequency



DINAMOMETRU MASURARE FORTA CU DATALOGGING EXTECH 475040-SD

• Features 5000g, 176 oz. and 49 Newtons measurement capacity
• Large dual backlit LCD with reversible display feature to match viewing angle
• Record data on SD card
• Updates reading every 0.2 seconds and sample rate is 1 second to 9 hours
• Integrated load cell measurement transducer



EXTECH DL160 INREGISTRATOR DATALOGGING CU 2 CANALE TENSIUEN SI CURENT AC TRUE RMS

• Simultaneously measure two AC Voltage inputs or two AC Current inputs or one AC Voltage and one AC Current input
• Readings can be downloaded to your PC via the USB interface and analyzed using the included software or exported to a spreadsheet
• LCD indicates time/date, current readings and Min/Max
• Auto Power off and battery check



EXTECH MO55 TESTER UMIDITATE UMIDOMETRU

• Displays moisture level in wood and building materials such as wall board, sheet rock, cardboard, plaster, concrete, and mortar
• Pinless moisture measurement depth to <1" (25mm)
• Audible Alert - Tone rate beeps faster as the moisture level increases
• Icons display low, medium and high levels of moisture content
• Easy-to-use, compact-sized design



EXTECH 380320 TESTER ANALOGIC IZOLATIE

• Large easy to read analog display
• Three test voltages 250V, 500V, and 1000V
• Insulation Resistance to 400MOhm
• Lock Power On feature for extended test times
