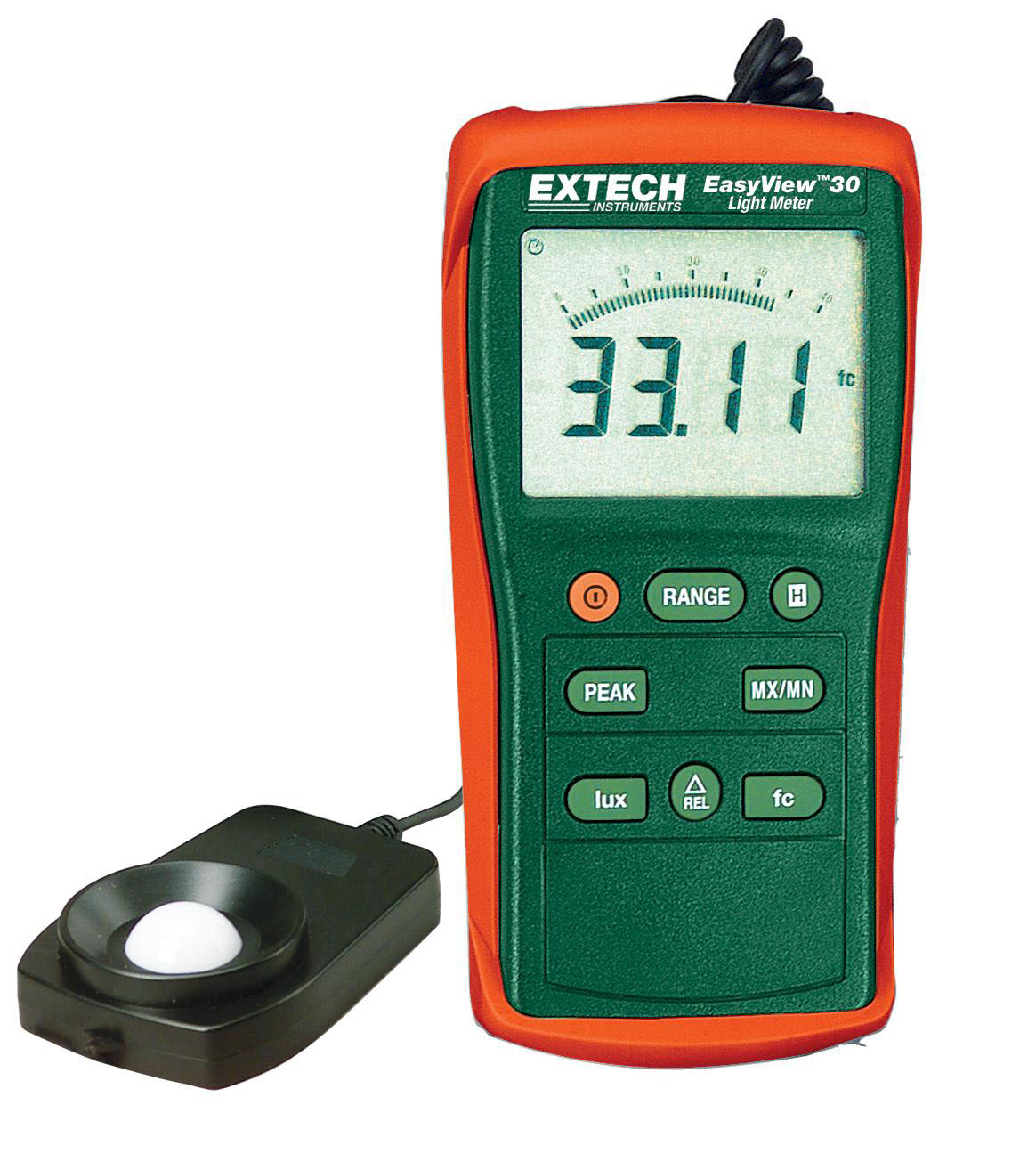

Extech EA30 EasyView Luxmetru gama extinsa

Cod: Extech EA30




Brosura produs PDF, 0.2 Mb

Descriere

High intensity light measurements up to 40,000Fc/400,000Lux

The EA30 Light meter sports a compact and rugged design and features a large display. Multiple wide measuring ranges: 40,000Fc in 4 ranges and 400,000Lux in 5. Data hold freezes reading on display MIN/MAX readings. Zero function Cosine and color corrected measurements. Low battery and overrange indication. Auto power off to save battery life. Meter utilizes precision silicon photodiode sensor with 3ft coiled cable for easy storage. Complete with built-in stand, remote sensor with protective cover, protective rubber holster and 6 AAA batteries.



Features:

ˇ         Compact and rugged design

ˇ         Widest range to 40,000Fc/ 400,000Lux is ideal for outdoor applications

ˇ         Large display with bargraph, Relative function for zero or difference from reference value

ˇ         Peak function captures short light pulse, Data Hold and Min/Max readings

ˇ         Auto power off, Zero function
