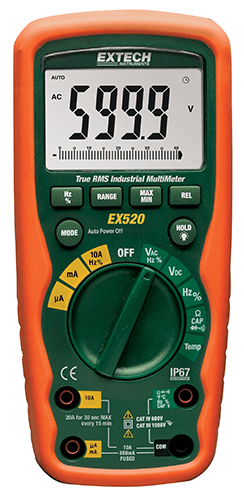

Extech EX520 Multimetru industrial rezistent TRMS cu 11 functii

Cod: Extech EX520




Brosura produs PDF, 0.36 Mb

Descriere

True RMS DMM with 6,000 count large LCD display, temperature function and waterproof housing

Designed to withstand harsh environments and usage, the meter's rugged, double-molded housing is IP67-rated (waterproof and dustproof) and drop-tested to 6 ft. The large, illuminated LCD displays 4-digit readout (to 6,000 counts). The EX520 offers various must-have measurements. The meter features 0.09 percent accuracy and a CAT IV 600-volt safety rating, protecting users even on outdoor wiring. Product includes a 3 year warranty, double molded test leads, 9V battery, magnetic hanging strap, temperature probe and carrying case.



Features:

  • True RMS DMM with 11 functions and 0.09% basic accuracy
  • AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode/Continuity
  • Dual sensitivity frequency functions (electrical/electronic)
  • 1000V input protection on all functions
  • 20A max Current
  • MIN/MAX, Data hold, Relative, Auto power off
  • 6,000 count large backlit LCD with bargraph
  • Double molded housing for waterproof protection
  • Complete with double molded test leads, magnetic hanging strap, Type K bead wire temp probe, carrying case and 9V battery
