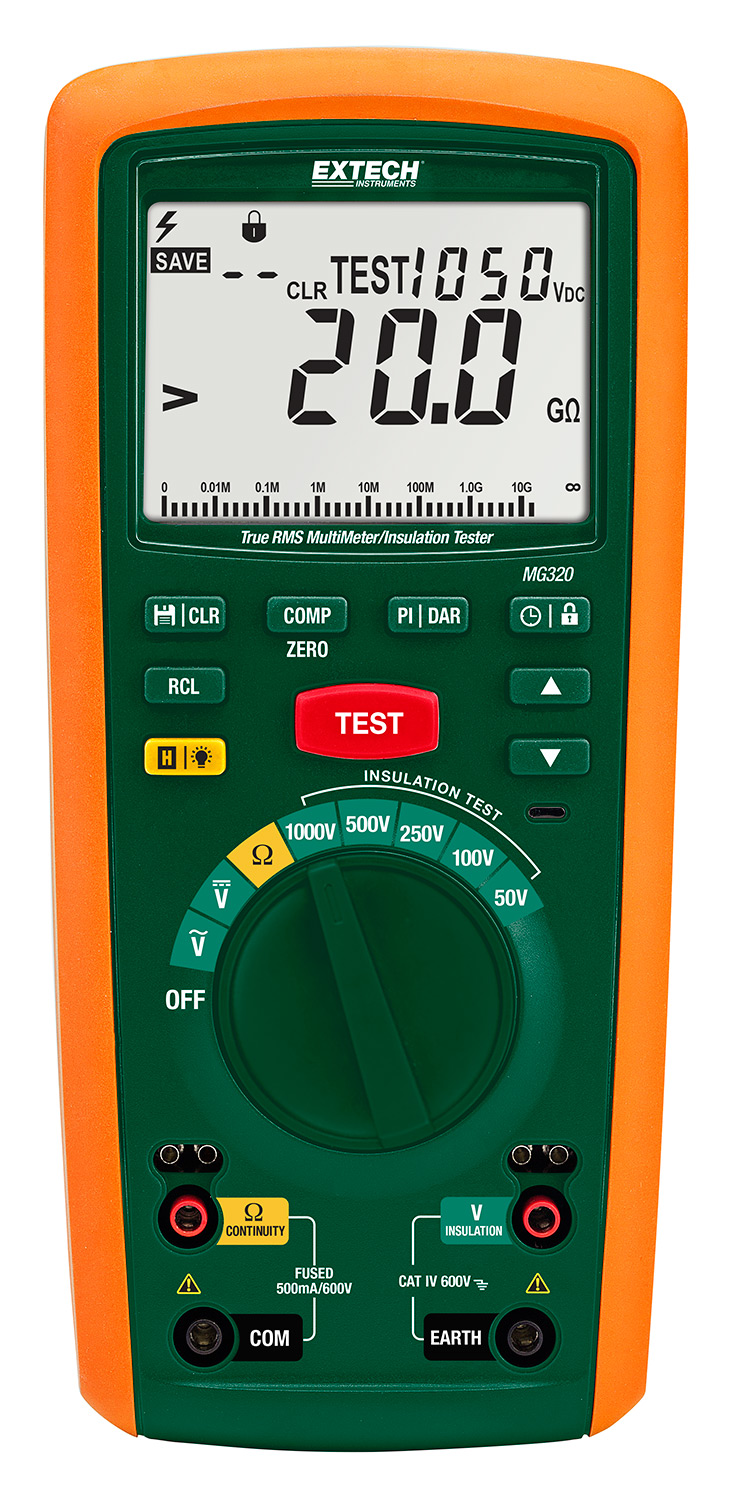

Extech MG320 Megohmmetru CAT IV Tester izolatie/True RMS

Cod: Extech MG320




Brosura produs PDF, 0.31 Mb

Descriere

20GO/1000V Insulation Tester with a True RMS MultiMeter

Combines a portable 20GO/1000V Insulation Tester with a True RMS MultiMeter. Insulation tester includes PI/DAR modes, programmable timer, and a comparator for custom test configurations and quick results. Multimeter functions include AC/DC Voltage, Resistance, and Continuity Test. Manually store/recall up to 99 readings. Designed with rugged housing and large backlit 6,000 count LCD display with analog bargraph. Complete with test leads, alligator clip, 6 x AA batteries, and soft case.


Features:

·         Measure Insulation Resistance to 20GO

·         5 Test Voltage ranges

·         Polarization Index (PI) and Dielectric Absorption Ratio measurements (DAR)

·         Low Resistance measurement with Zero function

·         Programmable Timer feature sets the duration of test

·         Comparison Mode allows user to set the Pass/Fail values for insulation measurements

·         Step Voltage (10% steps at 50% to 120% of range)

·         Auto-discharge of voltage test signal

·         Lock Power On Function for hands-free operation

·         Manually store/recall up to 99 readings

·         Backlit 6,000 count display with analog bargraph

·         High voltage and overload indication

·         Data Hold to freeze displayed reading

·         Auto Power Off and Low battery indication

·         Complete with test leads, alligator clip, 6 x AA batteries, and soft case
