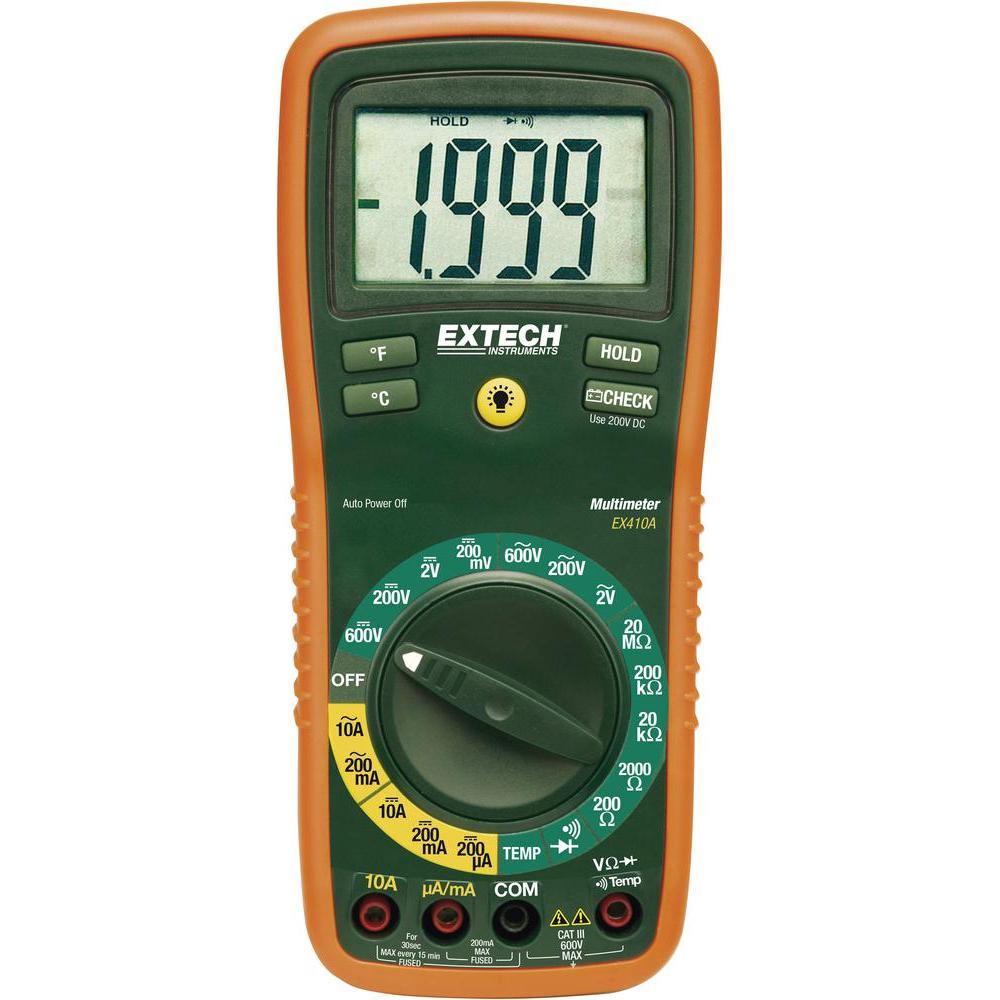

Extech EX410A Multimetru profesional cu 8 functii

Cod: Extech EX410A




Brosura produs PDF, 0.34 Mb

Descriere

Averaging, manual ranging DMM with large digit LCD display and temperature function

Compact and powerful, the Extech EX410A Eight-Function True RMS Professional MultiMeter provides the versatility of multiple meters in one convenient device. The EX410 measures AC/DC voltage and current, resistance, diode, and temperance. A large, backlit display and 1-inch high digits allow for easy reading, while the ergonomically designed housing offers comfortable, one-handed operation. Comes with Multimeter, CAT III test leads, stand, hanging strap, holster with built-in test lead storage, Type K bead wire temperature probe, and battery.



Features:

  • Averaging DMM with 8 functions and 0.5% basic accuracy
  • AC/DC Voltage & Current, Resistance, Temperature, Diode/Continuity
  • Input fuse protection and mis-connection warning
  • 10A max Current
  • Type K temperature measurements
  • Data hold, Relative, Auto power off
  • Large-digit backlit LCD
  • Complete with CAT III test leads, tilt stand, protective holster, velcro hanging strap, Type K bead wire temp probe and 9V battery
