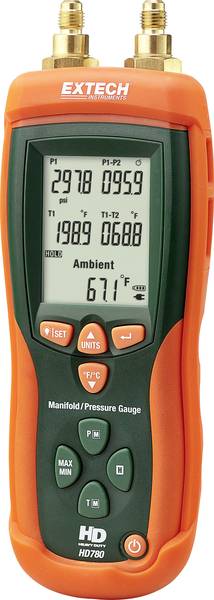

Extech HD780 Manometru digital digital

Cod: Extech HD780




Brosura produs PDF, 0.31 Mb


Descriere

Dual-Input Heavy-Duty Pressure/Type-K Temperature Meter

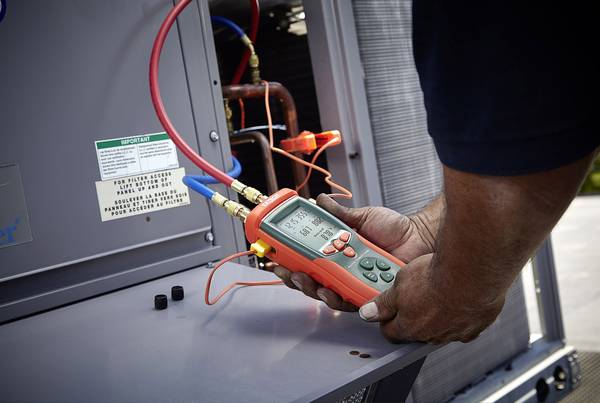

Extech’s Heavy duty Digital Manifold/Pressure Gauge simultaneously measures suction line or liquid line pressure and line temperature to calculate and display superheat and sub cooling for A/C units. It also has dual inputs measuring differential pressure (P1-P2) and Type K temperature (T1-T2). For use with R22 and R410A refrigerants. Included are heavy duty connection hoses, Type K Temperature Clamp probe, and bead wire Temperature probe.



Features:

  • Dual differential inputs for pressure and temperature
  • Displays 5 types of pressure units
  • For use with R22 and R410A refrigerants
  • Standard 1/4 NPT male flare fittings
  • Large backlit LCD displays P1, P2, P1-P2, T1, T2, T1-T2, Ambient Temperature, plus Min/Max/Avg
  • Dual Type K inputs with Electronic Offset adjustment to compensate for thermocouple differences
  • Large multi-line backlit LCD display
  • Data Hold plus Auto power off
  • Complete with two heavy duty pressure hoses, protective rubber holster, two Type K temperature clamp probes, two general purpose Type K bead wire temperature probes, Universal AC adaptor with plugs (US, EU, UK, AUS), 9V battery, and hard case
