Extech 480826 Tester camp electromagnetic pe trei axe

Cod: Extech 480826




Brosura produs PDF, 0.17 Mb

Descriere

Three axis (X, Y, Z) electromagnetic field measurement (30Hz to 300Hz)

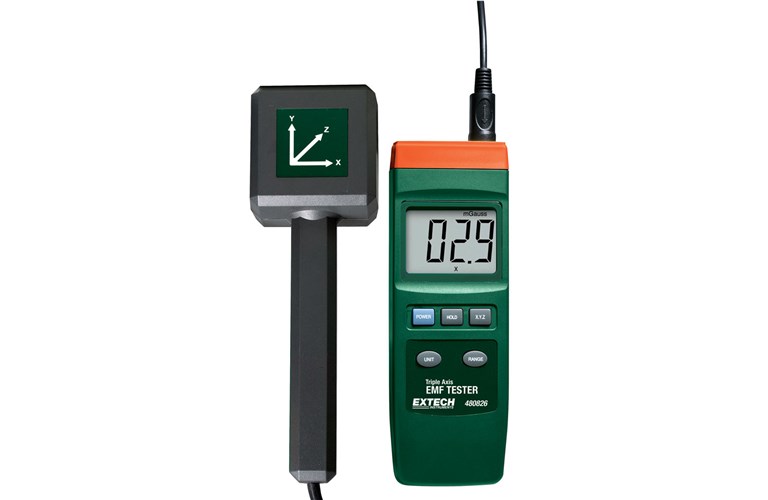

480826 Triple Axis EMF Tester is designed to provide a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, electrical appliances and industrial devices. Provides Three axis (X, Y, Z direction) electromagnetic field measurement. Calibrated to measure EMF radiation at wide bandwidths from 30 Hz to 300 Hz. Complete with sensor with 3 ft. (930 mm) cable, 9V battery, and hard carrying case.



·         Three axis (X, Y, Z direction) electromagnetic field measurement

·         Ideal for EMF measurements around power lines, electrical appliances and industrial devices

·         Wide measuring ranges (3 ranges of µTesla or mGauss)

·         Big digit LCD display, Data hold

·         Easy to use remote probe

·         Complete with sensor with 3ft (930mm) cable, 9V battery, and hard carrying case
