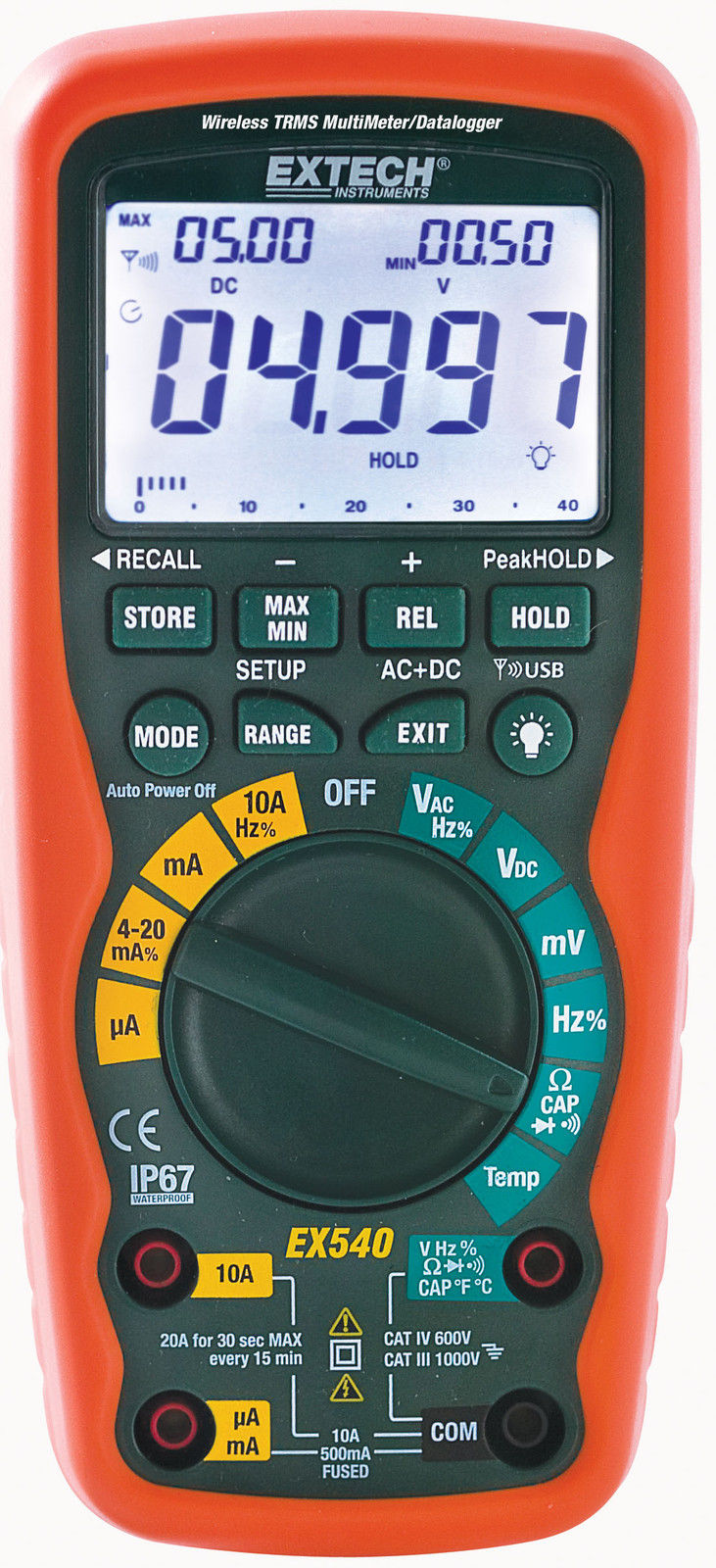

Extech EX540 Multimetru digital portabil industrial cu Wireless si Datalogger

Cod: Extech EX540




Brosura produs PDF, 0.41 Mb

Descriere

MultiMeter/Datalogger (up to 9,999 readings) with Wireless PC interface (915MHz)

The EX540 offers wireless connectivity to your laptop or PC using a USB receiver with a range comparable to Bluetooth (10m/33 ft.). The EX540 transmits real-time data for monitoring, trending and analysis (using the included software) on one of two available frequencies (914MHz). Now, electrical professionals can monitor and data log readings at a safe distance from hazardous locations. Additionally, it is easier to perform remote tasks such as powering up a device from a control panel that is not nearby. From a time-saving perspective for laptop users, the EX540 permits a user to set up his or her laptop at a centralized location and then sequentially data log readings throughout a site without relocating the laptop. In addition to wireless data logging, EX540 can log up to 9,999 readings internally and also reads voltage, current, resistance, capacitance, frequency (with dual-range sensitivity for electrical and electronic work), duty cycle (dwell), continuity, diode testing (2.8 Volt), and even temperature (using its Type K thermistor bead probe). Complete with double-molded test leads, USB wireless receiver (914MHz), temperature probe, magnetic hanging strap, 9V battery and carrying case.



Features:

  • True RMS measurements for accurate AC Voltage and Current measurements
  • AC/DC Voltage & Current, Resistance, Capacitance, Frequency (electrical/electronic), Temperature, Duty Cycle, Diode/Continuity
  • Double molded for waterproof (IP67) protection, CAT IV-600V safety rating for industrial applications
  • Data Acquisition Mode for real time data transmission directly to your PC
  • 1000V input protection on all functions
