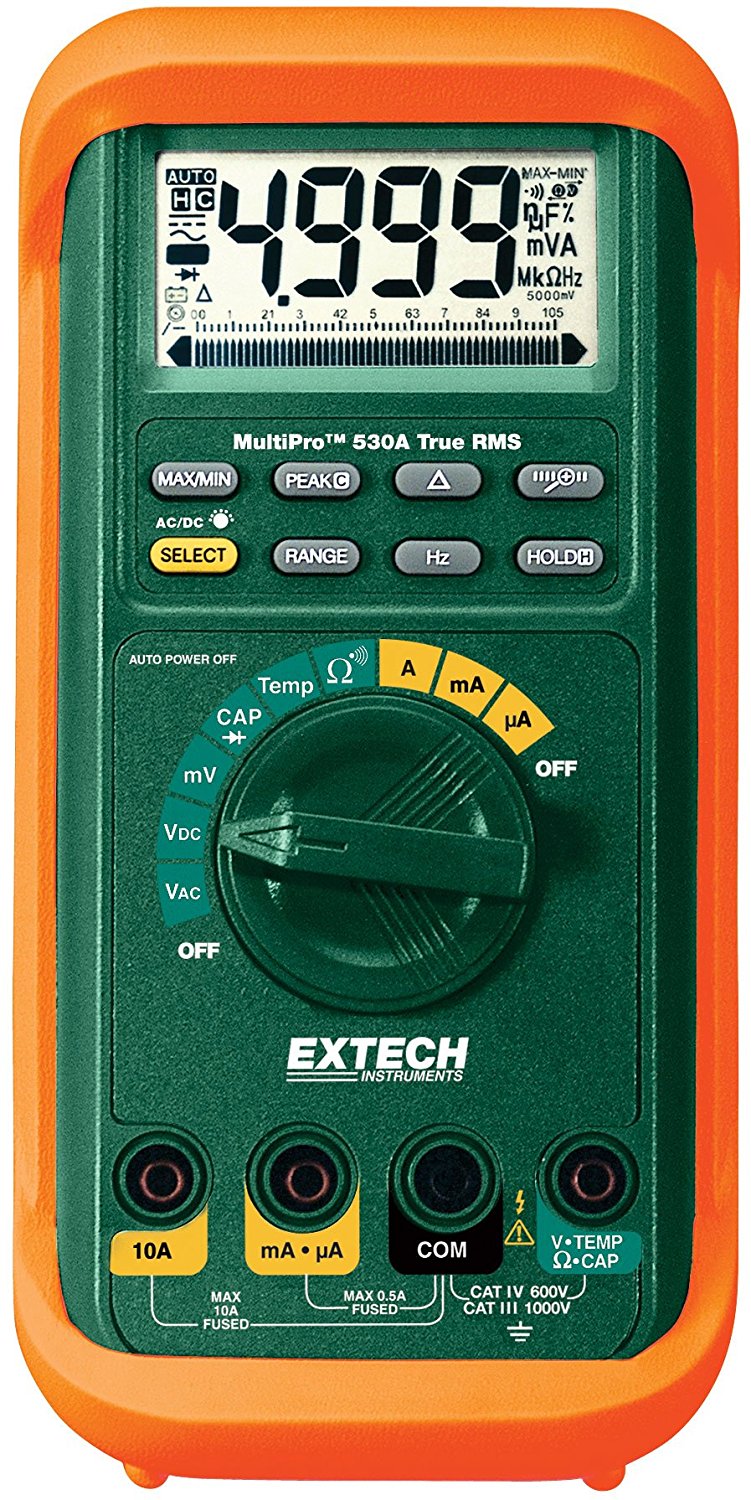

Extech MP530A MultiPro® Multimetru performant

Cod: Extech MP530A




Brosura produs PDF, 0.27 Mb


Descriere

True RMS Autoranging Digital MultiMeters with RS-232 PC Interface and Temperature Function

MP530A is a 5000 count, True RMS auto Ranging Multimeter measures AC/DC Voltage, AC/DC current, Resistance, Temperature, Capacitance and Frequency with a 0.08% basic accuracy. Additional features include: diode test, continuity check, easy-to-read backlit display, Auto Power Off, Data Hold, and low resistance auto lead zero. UL listed, CAT IV-600 Volt rating. Includes protective holster with built-in stand, test leads, Type K bead temperature probe, and 9 Volt battery.



Features:

  • High basic DC Voltage accuracy of 0.08%
  • Wide AC Voltage bandwidth of 40Hz to 20kHz
  • Rugged design with protective holster and water resistant housing
  • Backlit 5000 count LCD display for high resolution (0.01mV, 0.1µA, 0.01Ohm, 0.01nF, 0.001Hz)
  • Multimeter functions: True RMS AC/DC Voltage and Current, Resistance, Frequency, Capacitance, Diode and Continuity
  • Temperature function: -58 to 1832°F (-50 to 1000°C )
  • Smart auto power off, Hold and low resistance auto-lead zero
  • Complete with built-in stand, CAT IV test leads, protective holster, Type K temperature probe and 9V battery
  • Optional Windows® compatible PC communication software and optically isolated cable
