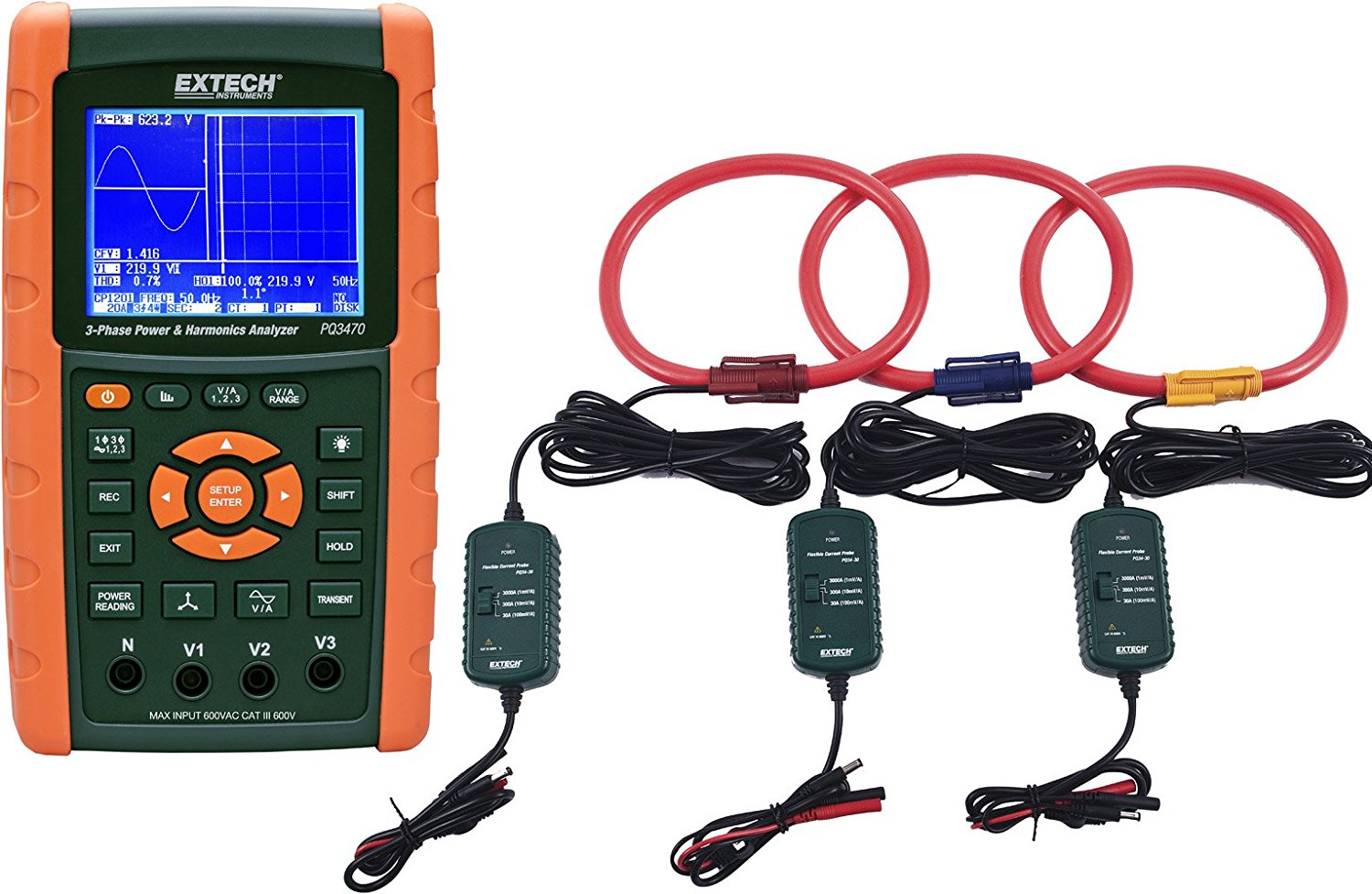

Extech PQ3470-30 Kit Analizor de putere 3 faze 3000APQ3470 with PQ34-30

Cod: Extech PQ3470-30




Brosura produs PDF, 0.41 Mb


Descriere

Datalogging Power Analyzer (up to 30,000 sets of measurements) and 1200A Current Clamp Probes (set of 3)

The PQ3470 is a 3-phase graphical power and harmonics analyzer/data logger capable of logging up to 30,000 sets of measurements on a removable SD memory card. The meter features a 3-phase voltage or current unbalanced ratio (VUR, AUR) and unbalanced factor, captures transient events (including dip, swell, and outage) with programmable threshold (%), a wide sampling rate range (2 seconds to 2 hours), a built in clock/ calendar and a CAT III 600 Volt safety rating. Complete with one year warranty, 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240 Volt AC adaptor and case. Clamp probes sold separately.

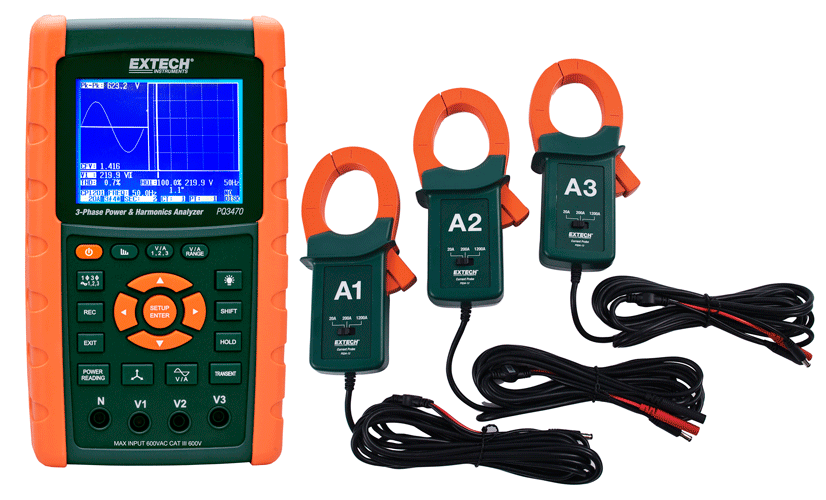

Extech PQ3470-12: 1200A Power Analyzer Kit: PQ3470 with PQ34-12

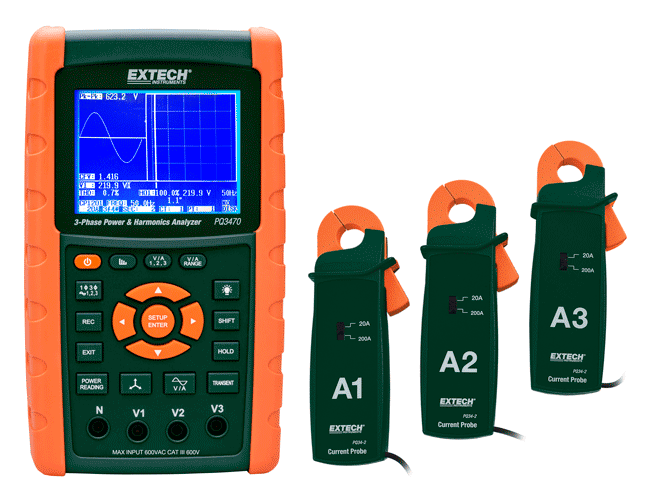

Extech PQ3470-2: 200A Power Analyzer Kit: PQ3470 with PQ34-2



Features:

  • Large dot-matrix, sun-readable, numerical, backlit LCD with easy-to-use onscreen menu|Full system analysis with up to 35 parameters:
    • V (phase-to-phase), V (phase-to-ground)
    • A (phase-to-ground)
    • KW / KVA / KVAR / PF (phase)
    • KW / KVA / KVAR / PF (system)|
    • KWH / KVAH / KVARH / PFH (system)
    • Phase angle
  • Optional 200A, 1200A Current Clamps or 3000A Flexible Current Probes (sold separately)|Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems
  • Simultaneous display of Harmonics and Waveform|Analysis of Total Harmonic Distortion (THD)
  • Graphic Phase diagram with 3-Phase system parameters
  • 3-phase Voltage or Current Unbalanced Ratio (VUR, AUR) and unbalanced factor
  • Capture Transient events (including dip, swell, and outage) with programmable threshold (%)
  • Log up to 30,000 reading on a removable SD memory card in Microsoft Excel® format
  • Wide sampling rate range (2 seconds to 2 hours)
  • Built-in Clock and Calendar
  • Complete with 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240V AC adaptor and case. Clamp probes sold separately.
