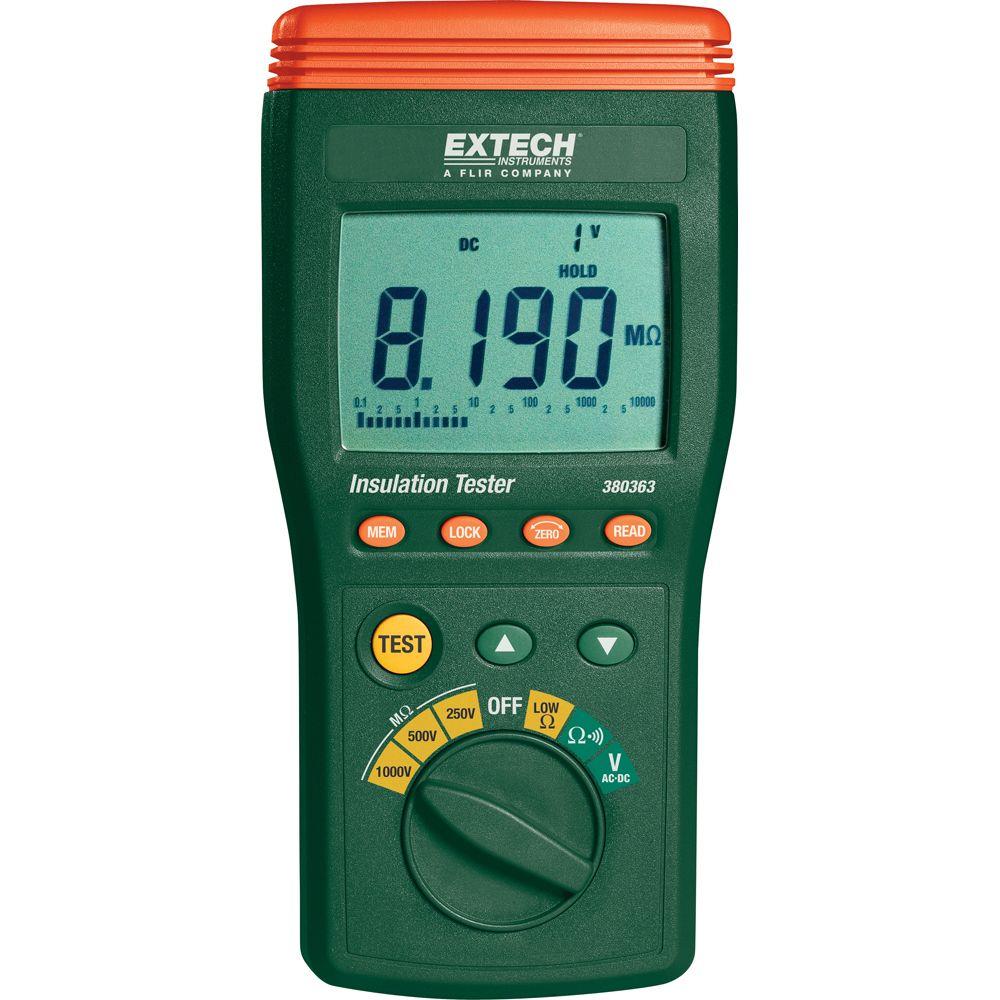

Extech 380363 Tester digital izolatie rezistenta

Cod: Extech 380363




Brosura produs PDF, 0.14 Mb

Descriere

Autoranging insulation measurements to 10MOhm plus manual datalogging

This Extech insulation tester measures up to 10GO with 250V, 500V and 1000V Test Voltages. Features include: Lo-Ohms for testing connections, analog bargraph for viewing trends, AC/DC Voltage measurement to 999V, manual data record/recall function (9 sets), and live circuit display warning and beeper. Can be used to test motor, transformer windings, instruments, and appliances, check for moisture in wire and cable assemblies, safely evaluate a new wiring installation, and check for carbon tracking in breakers, relays, and switches. Extech Insulation Testers offer high sensitivity to assure reliable monitoring of low resistance motor windings. Complete with carrying case, test leads, and 6 x AA batteries.


Features:

·         250V, 500V and 1000V Test Voltages

·         Measure Insulation Resistance to 10GOhm

·         Large LCD display with analog bargraph

·         Lo Ohm function for testing connections

·         Automatic discharge of capacitive voltage charges

·         AC/DC voltage measurement up to 999V

·         Manual data record and read function (9 sets)

·         Live circuit display warning and beeper
