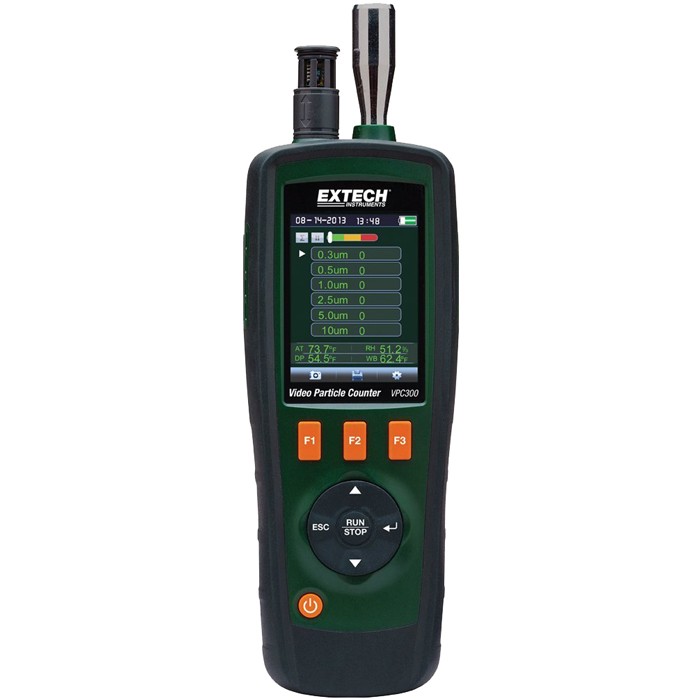

Extech VPC300: Video Particle Counter with built-in Camera

Cod: Extech VPC300




Brosura produs PDF, 0.29 Mb

Descriere

Measure up to 6 Channels of Particle Sizes plus Air Temperature and Relative Humidity



The VPC300 is a Video Particle Counter with built-in Camera. Measures up to 6 channels of particle sizes plus air temperature and relative humidity. Used for capturing videos and photos that are stored onto internal memory or a micros card. The VPC300 can measure up to 6 channels of particle sizes plus air temperature and relative humidity. Use the included software to generate reports with videos, photos and data points. Complete with NIST-traceable calibration certificate, Universal AC Adapter/Charger with multiple plugs, USB cable, PC software, tripod, filter, 7.4V NiMH battery and a hard, protective case.



·         Simultaneously measure and display 6 channels of particle sizes (down to 0.3µm), Air Temperature, Humidity, Dew Point and Wet Bulb

·         2.8" TFT Color LCD display

·         Built-in 320x240-pixel camera takes videos (3GP) and photo images (JPEG) and records them in internal 74MB memory

·         Store 5000 records (date, time, counts, humidity, temperature, sample volumes, and location label) and 20 minutes of video

·         Selectable sample time, count data, and programmable delay

·         Max, Min, DIF, AVG record, Date/time setup controls, Auto Power Off

·         Mini-USB port connection

·         Complete with NIST-traceable calibration certificate, Universal AC Adapter/Charger with multiple plugs, USB cable, PC software, tripod, filter, 7.4V NiMH battery and hard case
