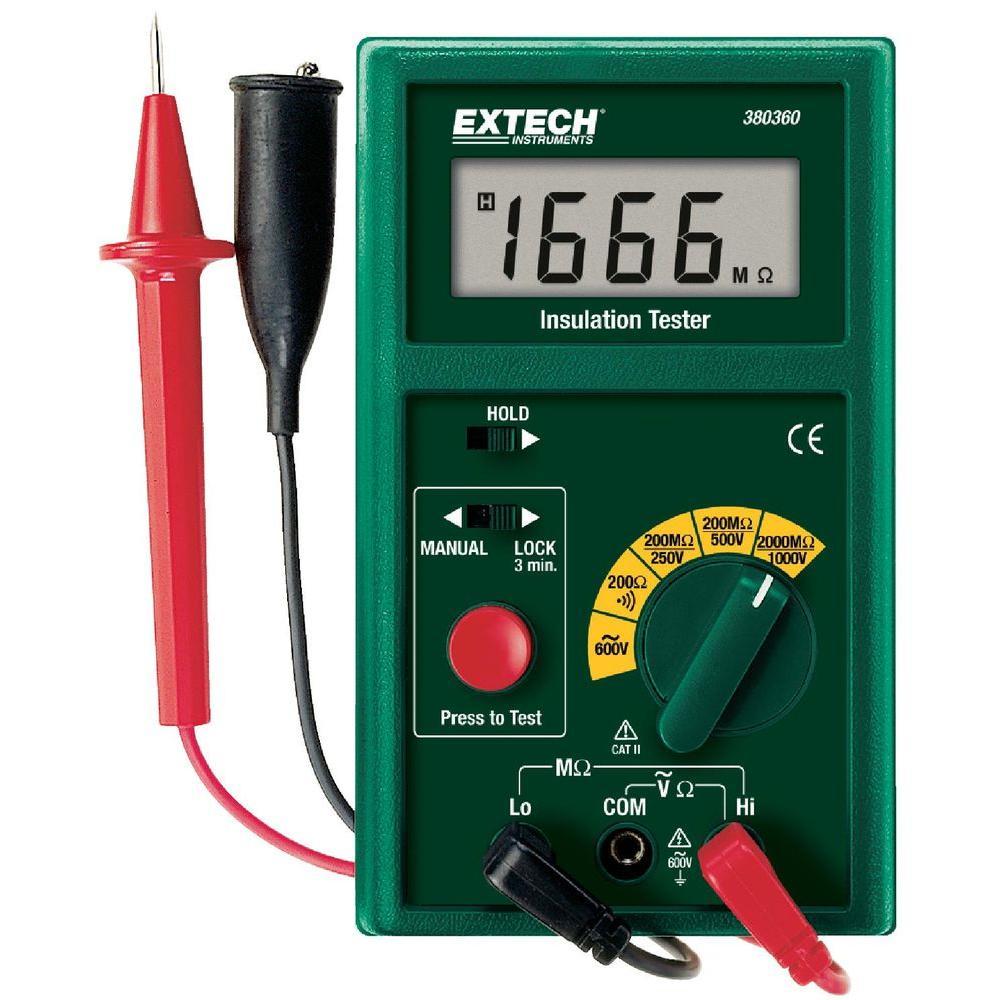

Extech 380360 Megohmetru digital

Cod: Extech 380360




Brosura produs PDF, 0.36 Mb

Descriere

1000V digital tester with automatic 3 minute test

The 380360 is a 1000V digital tester with an automatic 3 minute test. Three test voltages of 250V, 500V and 1000V. Insulation Resistance to 2000MO. Automatic discharge when safety "Press to Test" button is released. Complete with 6 x AA batteries, heavy duty 2.5 ft. (0.8m) test leads, alligator clip, large probe and case with neck strap.


Features:

·         Three test voltages of 250V, 500V and 1000V

·         Insulation Resistance to 2000MOhm

·         Safety Power Lock enables "hands free" operation for 3 minute test

·         Automatic discharge when safety "Press to Test" button is released

·         Continuity measurements to 200Ohm and Voltage to 600VAC
