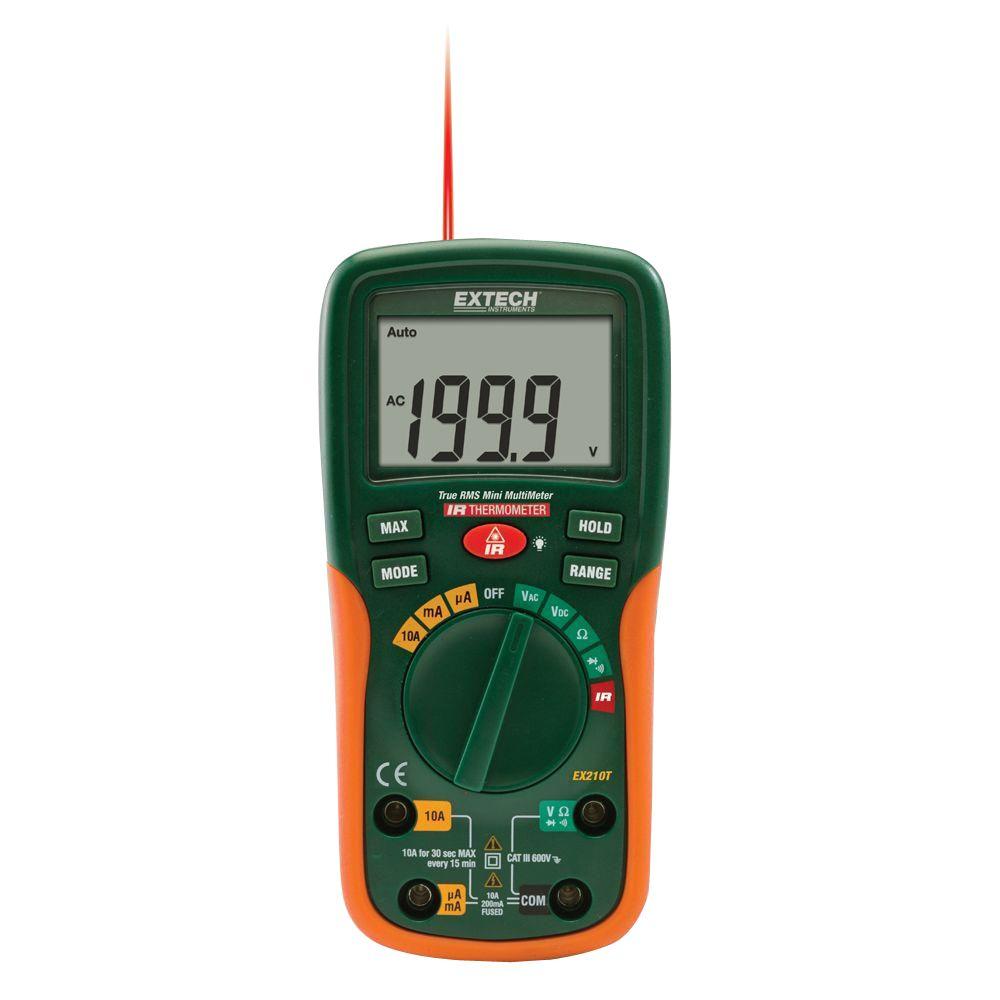

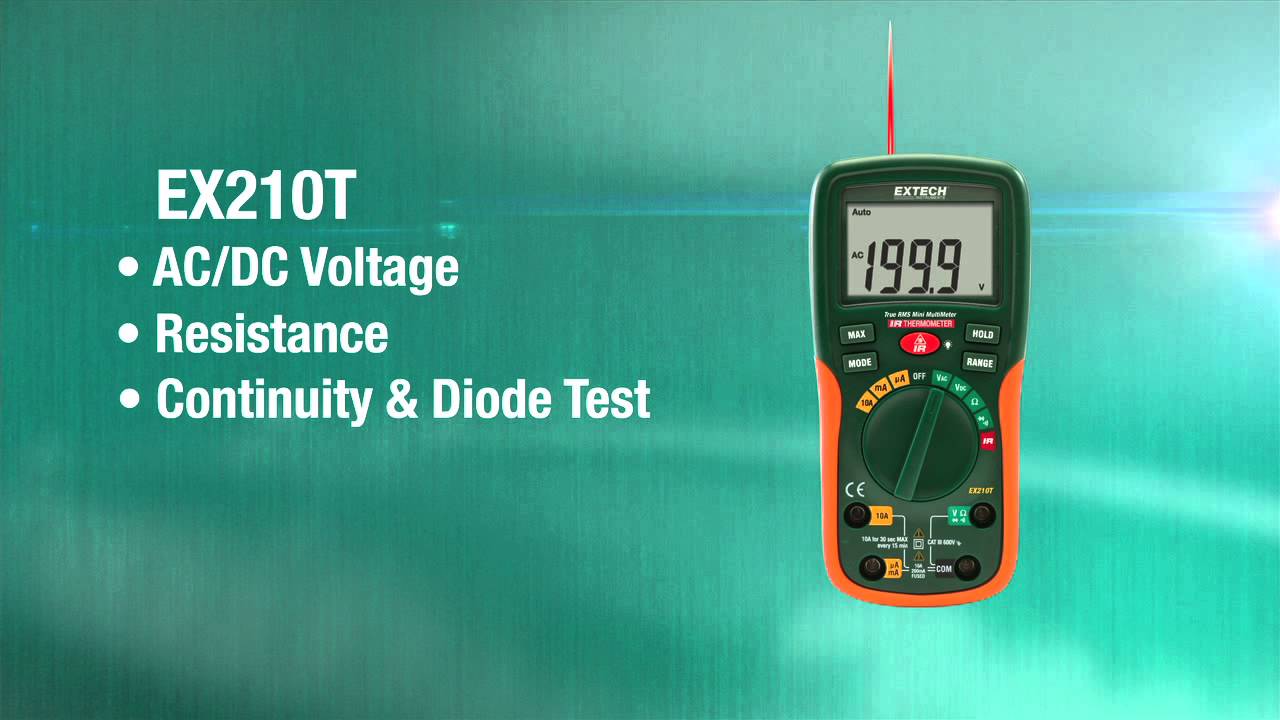

Extech EX210T Multimetru digital TrueRMS cu Infrarosu

Cod: Extech EX210T




Brosura produs PDF, 0.21 Mb


Descriere

Autoranging Multimeter with 2000 Count Large LCD Display and Infrared Thermometer

The EX210T is a TrueRMS Digital Multimeter with IR. The meter auto ranges and has a 2000 count large LCD display. Measures AC/DC voltage and Current, Resistance and Temperature (IR). Its True RMS measurements make this meter more accurate and reliable when measuring distorted waveforms and its built in IR thermometer has a 4:1 distance to target ratio, visually aided by the built in laser pointer. This meter has a CAT III 600V safety rating and is complete with a year warranty, test leads and a 9V battery.



Features:

  • True RMS for better accuracy when measuring distorted waveforms
  • Built-in IR Thermometer with 4:1 distance to target ratio and laser pointer
  • 2000 count large backlit dual LCD with easy-to read digits
  • Low current capability with resolution to 0.1µA
  • Input fuse protection
  • Max Hold, Data Hold and Auto power off
  • Complete with test leads and 9V battery


Alte produse EXTECH

EXTECH MA260 CLESTE DE CURENT DESCHIS TRUE RMS 200A AC

• Smart Auto Sensing technology enables the meter to recognize the input and automatically switch to the correct mode of operation
• For AC Voltage, Auto Sense feature evaluates input signal and adjusts Input Impedance to eliminate effects of ghost voltages
• 0.6" (16mm) open jaw size
• True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms
• Built-in non-contact voltage detector with LED indicator
• 10,000 count backlit LCD display



EXTECH PQ3350-3 ANALIZOR PUTERE SI ARMONICI 3 FAZE

• Datalogging of single and 3-phase/3-wire or 3-phase/4-wire systems (up to 52,428 single phase readings or 17,476 3-phase readings)
• Flexible clamp probes can be used for wrapping around bus bars and wire bundles
• Large backlighting LCD displays up to 35 parameters in one screen
• Clamp-on True RMS power measurements with on-screen Harmonics display
• Simultaneous display of Harmonics and Waveform



EXTECH EX320 MULTIMETRU CU 8 FUNCTII SI DETECTOR TENSIUNE FARA CONTACT

• Autoranging DMM with 8 functions and 0.5% basic accuracy
• AC/DC Voltage & Current, Resistance, Diode/Continuity
• Built-in non-contact AC voltage detector (NCV) with red LED indicator and audible beeper
• Large-digit 2,000 count LCD display



EXTECH DT200 TELEMETRU LASER MASURA DISTANTE PANA LA 35M

• Measures from 2" to 115' (0.05 to 35m)
• Laser measurement accurate to 0.08 inches at 32 feet
• Historical Storage recalls the previous 10 records (measurements or calculated results)
• Automatically calculates Area and Volume
• Indirect measurement using Pythagorean theorem



DINAMOMETRU MASURARE FORTA EXTECH 475040

• Range: 176 oz, 5000g, 49 Newtons (±0.4% accuracy)
• Ideal for a wide variety of applications in the electronics, automotive, chemical, plastics and machinery industries
• Reversible display and fast/slow response mode
• Exclusive load cell measurement transducer
• Overrange, low battery and advanced function indication



EXTECH EX330 MINI-MULTIMETRU CU 12 FUNCTII + NCV

• Autoranging DMM with 12 functions and 0.5% basic accuracy
• AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode/Continuity
• Built-in non-contact AC voltage detector (NCV) with red LED indicator and audible beeper
• Large-digit 4,000 count LCD display
• 10A max Current



EXTECH DM220 MINI-MULTIMETRU CU DETECTOR DE TENSIUNE FARA CONTACT

• Large high contrast 4000 count LCD display
• Non-Contact Voltage detection identifies live circuits
• Built-in Flashlight
• Measures AC/DC Voltage, AC/DC Current and Resistance, Frequency and Duty Cycle
• Diode Test and Continuity Beeper



EXTECH PQ3470-30 KIT ANALIZOR DE PUTERE 3 FAZE 3000APQ3470 WITH PQ34-30

• Graphic Phase diagram with 3-Phase system parameters
• 3-phase Voltage or Current Unbalanced Ratio (VUR, AUR) and unbalanced factor
• Capture Transient events (including dip, swell, and outage) with programmable threshold (%)
• Log up to 30,000 reading on a removable SD memory card in Microsoft Excel® format
• Wide sampling rate range (2 seconds to 2 hours)



EXTECH CT40 TESTER CU IDENTIFICATOR DE CABLU

• Troubleshoot electrical/electronic circuits and identify up to 16 local or installed lines
• MultiMeter functions include: AC/DC Voltage and Current, Resistance, Diode, and Continuity
• Transmitter/Receiver enables one person to remotely identify up to 16 wires
• Wire voltage check from 5 to 16VDC
• Data Hold and Max Hold, Auto power off



EXTECH 96VFL11 1/4 DIN CONTROLER TEMEPRATURA PID CU 2 IESIRI DE RELEE

• Two relay outputs
• Dual 4-digit LED displays of process and setpoint values
• User friendly menus and tactile keypad for easy programming
• One-touch autotuning for quick setup & precise control
