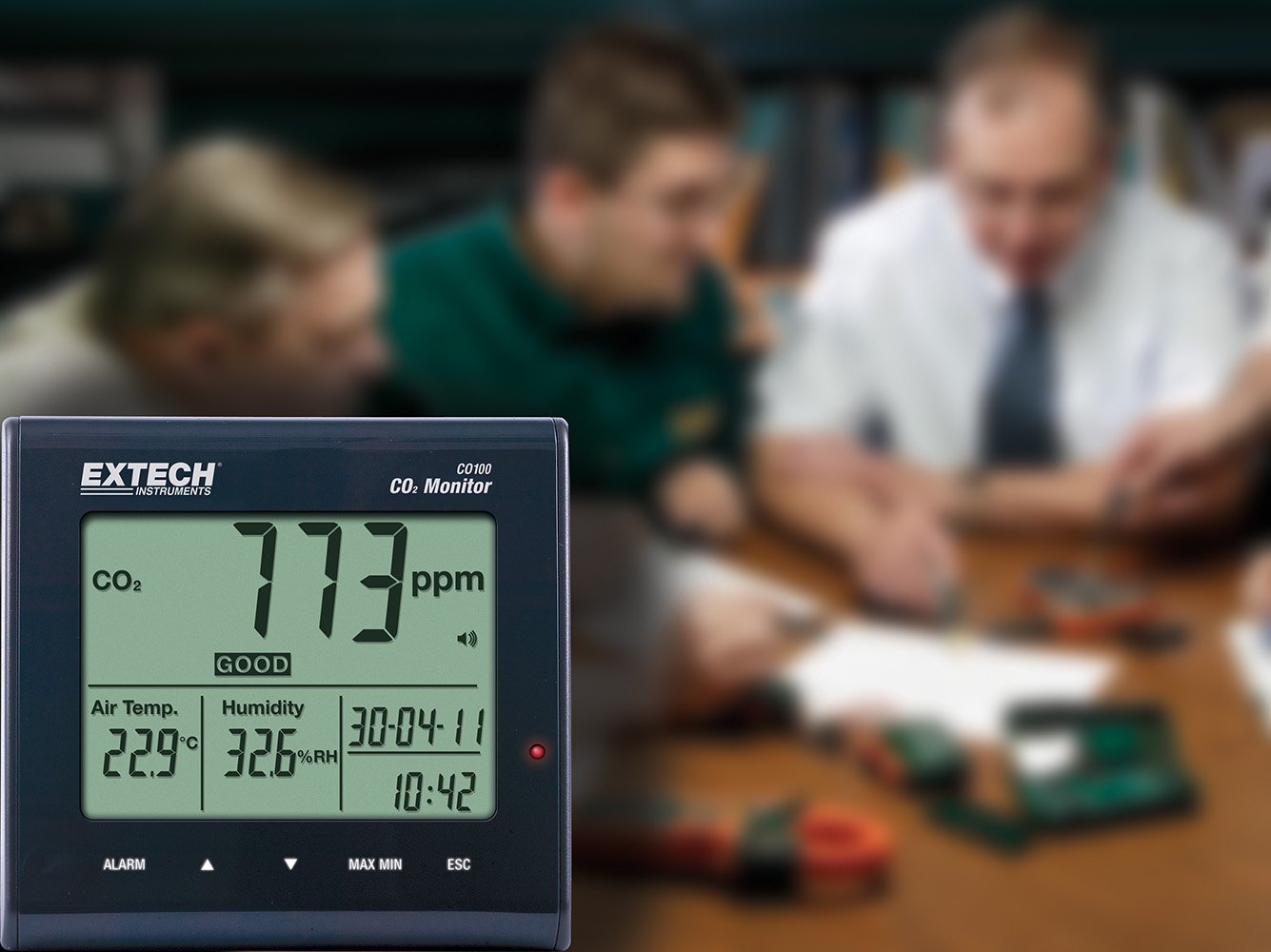

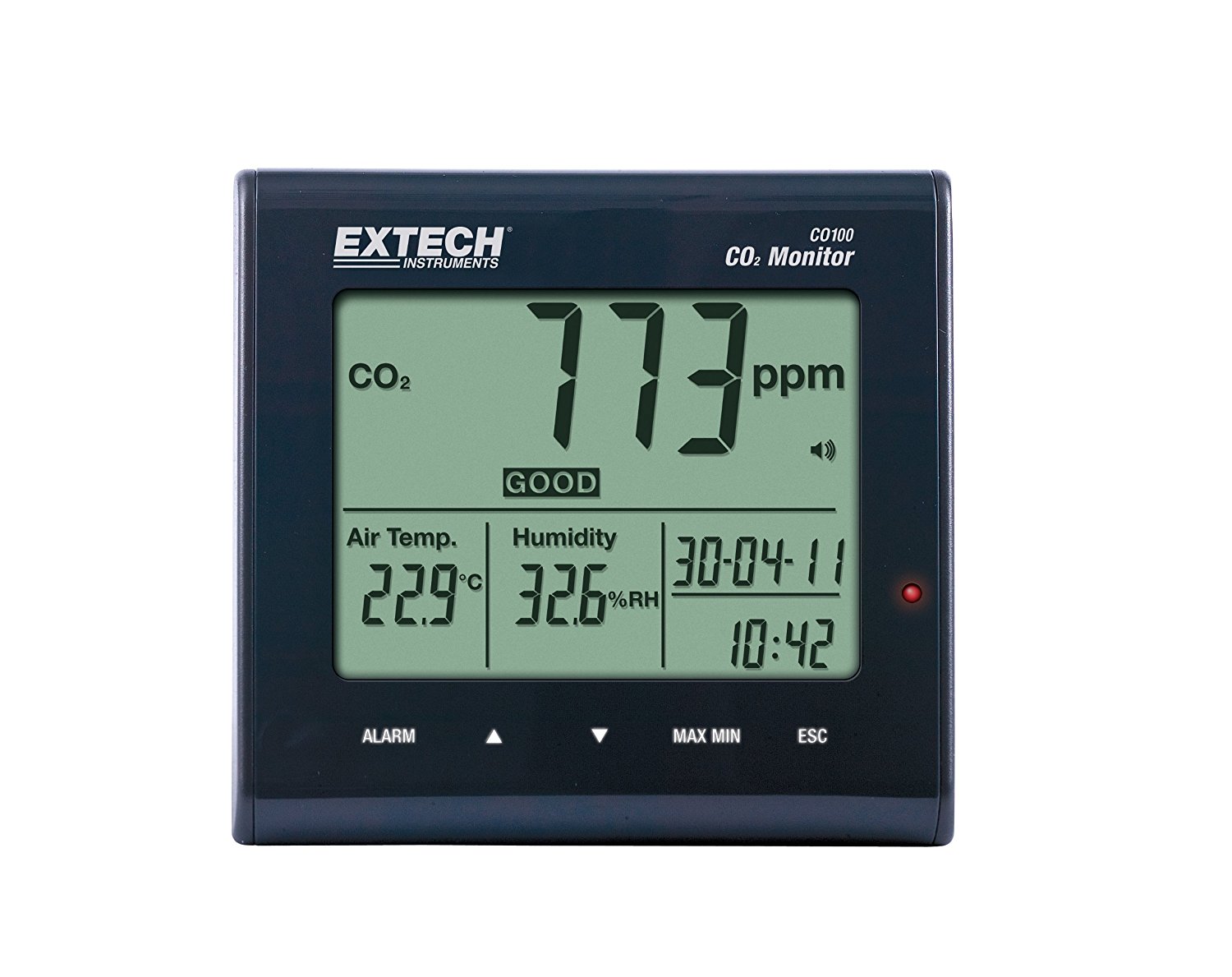

Extech CO100 Tester calitate aer de birou CO2

Cod: Extech CO100




Brosura produs PDF, 0.34 Mb


Descriere

  • Checks for Carbon Dioxide (CO2) concentrations
  • Maintenance free NDIR (non-dispersive infrared) CO2 sensor
  • Indoor Air Quality displayed in ppm with Good (0 to 800ppm), Normal (800 to 1200ppm), Poor (>1200ppm) indication
  • User programmable Visible and Audible CO2 warning alarm
  • Measurement ranges:
    • CO2: 0 to 9999ppm
    • Temperature: 23 to 122°F (-5 to 50°C)
    • Humidity: 0.1 to 90%RH
  • Displays Year, Month, Date, and Time
  • Max/Min CO2 value recall function

Function

Range

Resolution

Accuracy

CO2

0 to 9999ppm

1ppm

±75 ppm or ±5% of reading

Temperature

23 to 122°F (-5°C to 50°C)

0.1°

±1.5°C/2.7°F

Humidity

0.1 to 90.0%

0.1%

±5%

Display

LCD with backlighting

Sampling Interval:

2 seconds

Overload Indication:

"-OL-"

Sensor Type

CO2: NDIR (non-dispersive infrared) technology

Operating Conditions

-5°C to 50 °C (23 oF to 122 oF) at < 90 % RH

Storage Conditions

-5°C to 50 °C (23 oF to 122 oF) at < 90 % RH

Power Supply

110V~220V AC, output 6.0V DC = 500mA (supplied)

Dimensions / Weight

117x102x102mm (4.6x4x4"); 204g (7.2 oz.)
