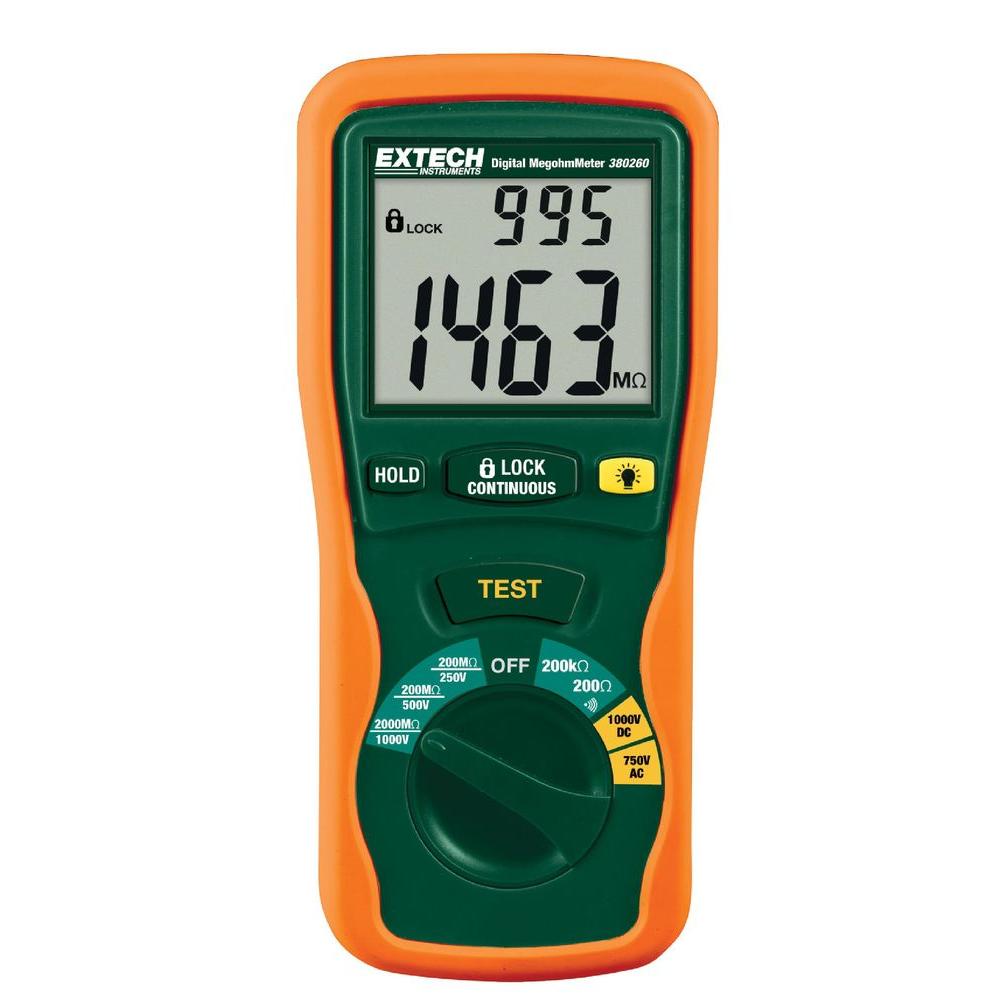

Extech 380260 Megohmmetru digital cu Autoranging

Cod: Extech 380260




Brosura produs PDF, 0.21 Mb

Descriere

1000V digital tester with large dual backlit display

This autoranging megohmmeter measures insulation resistance up to 2000MO. Choice of 250, 500 or 1000VDC test voltages. The large backlit dual display indicates test voltage output and insulation resistance. Low resistance, continuity and AC/DC voltage measurement functions. Other features include automatic discharge at the end of test, protective holster with stand, power lock on feature and data hold. Complete with test leads, carrying case and 6 AA batteries.


Features:

·         250V, 500V, and 1000V test voltages

·         Insulation Resistance to 2000MOhm

·         Lo Ohm function for testing connections

·         Lock Power On Function for hands-free operation

·         Data Hold to freeze displayed reading

·         Complete with heavy duty test leads, alligator clip test lead, 6 x AA batteries, hanging strap and hard carrying case
