Tester umiditate EXTECH MO257

Cod: EXTECH MO257




Brosura produs PDF, 0.12 Mb


Descriere

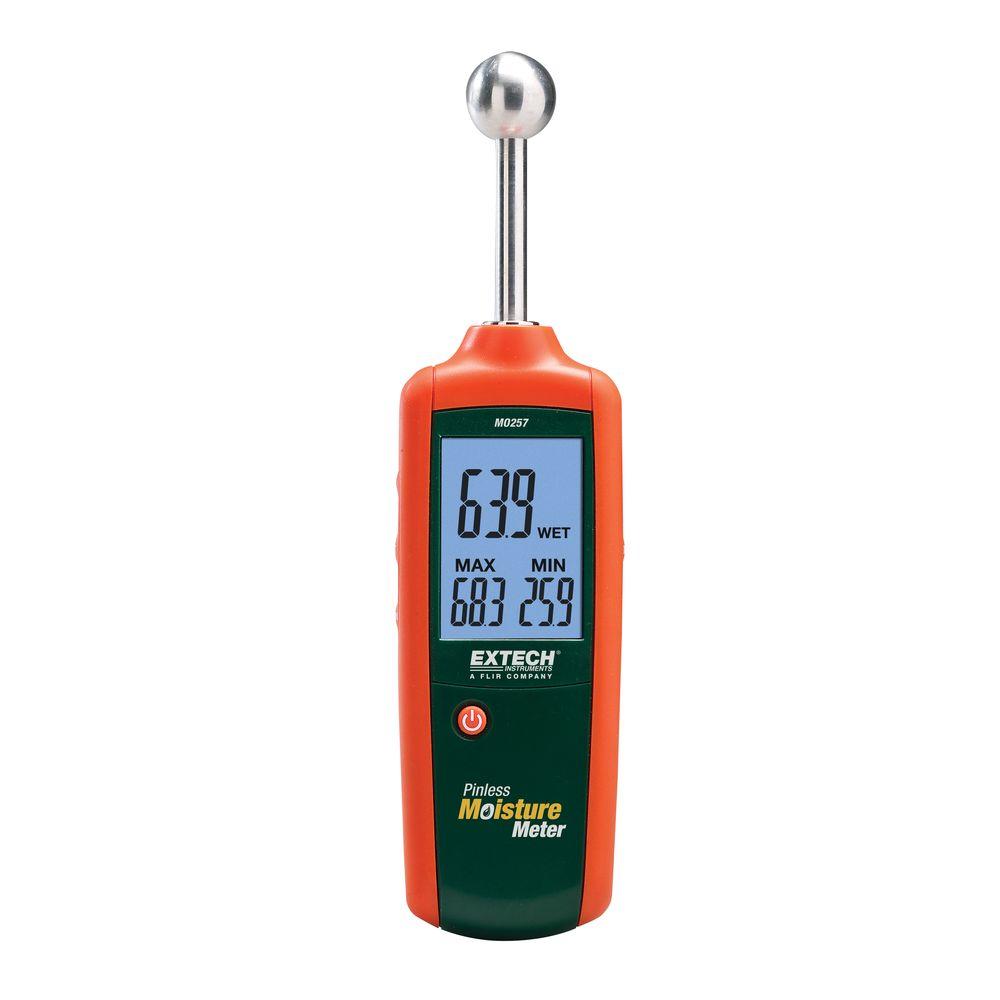

Extech MO257: Pinless Moisture Meter

Non-invasive moisture content measurements in wood/building materials

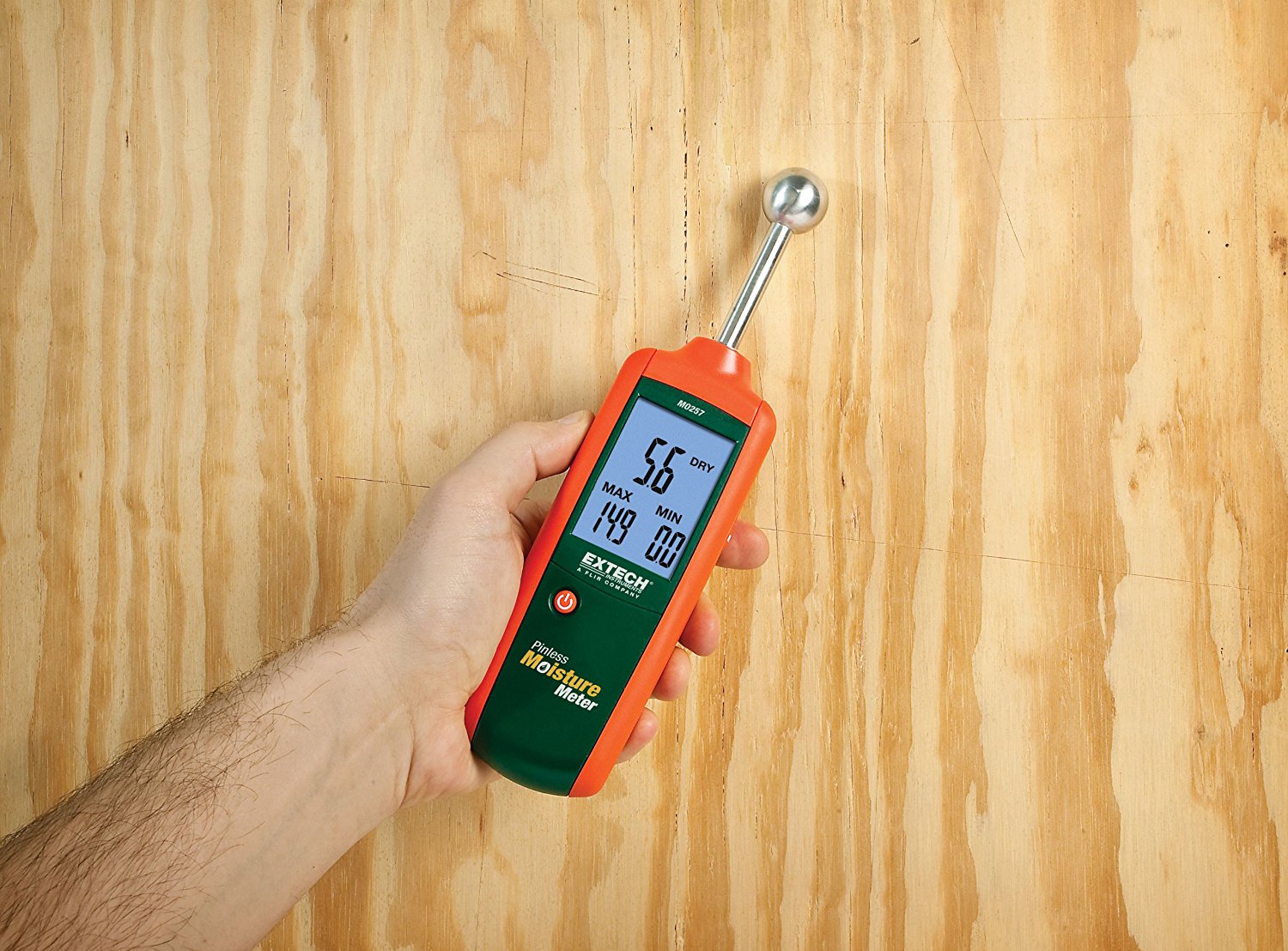

The MO257 Pinless Moisture Meter is for non-invasive measurements in wood and other building materials with virtually no surface damage. Measurement depth from 0.78 in. (20mm) to 1.6 in. (40mm) below the surface. Two user-settable alarm levels with audible beeper and visual flashing RISK or WET indicators. Triple backlit LCD. Complete with 3 AA batteries and pouch case.



Measures relative moisture of various building materials including wood, particle board, carpeting, and ceiling tiles using non-invasive Pinless Technology



  • Relative pinless moisture reading for non-invasive measurement from 0.0 to 100.0 with 0.1 resolution
  • Multifunction backlit triple LCD display
  • Pinless measurement depth from 0.78" (20mm) to 1.6" (40mm) below the surface
  • High frequency sensing technology
  • Automatic Data Hold
  • Two adjustable alarm levels with audible beeper and visual (flashing "RISK" or "WET") indicators
  • Automatic calibration (in dry air) when meter is powered on
  • Low battery indication, Auto Power off
  • Complete with 3 AA batteries and pouch





Specifications

Range

Accuracy

Moisture Range

0.0 to 100.0

Relative only

Measurement Depth

20 to 40mm (0.79 to 1.57")

Display type

Backlit LCD

Display digits

Three (3) numeric displays; each displaying from 0.0 to 100.0

Display icons

HOLD, DRY, RISK, WET, MIN, MAX and low battery icon

Operating Temperature

4 to 43°C (40 to 110°F)

Operating Humidity

90%, 0-30°C (32-86°F), 75%, 30-40°C (86-104°F), 45%, 40-50°C (104-122°F)

Power Supply

Three (3) 1.5V 'AAA' batteries

Auto Power Off (APO)

After 30 minutes of inactivity

Dimensions

235 x 63 x 28mm (9.2 x 2.5 x 1.1")

Weight

218g (7.7oz)







Accesorii standard
