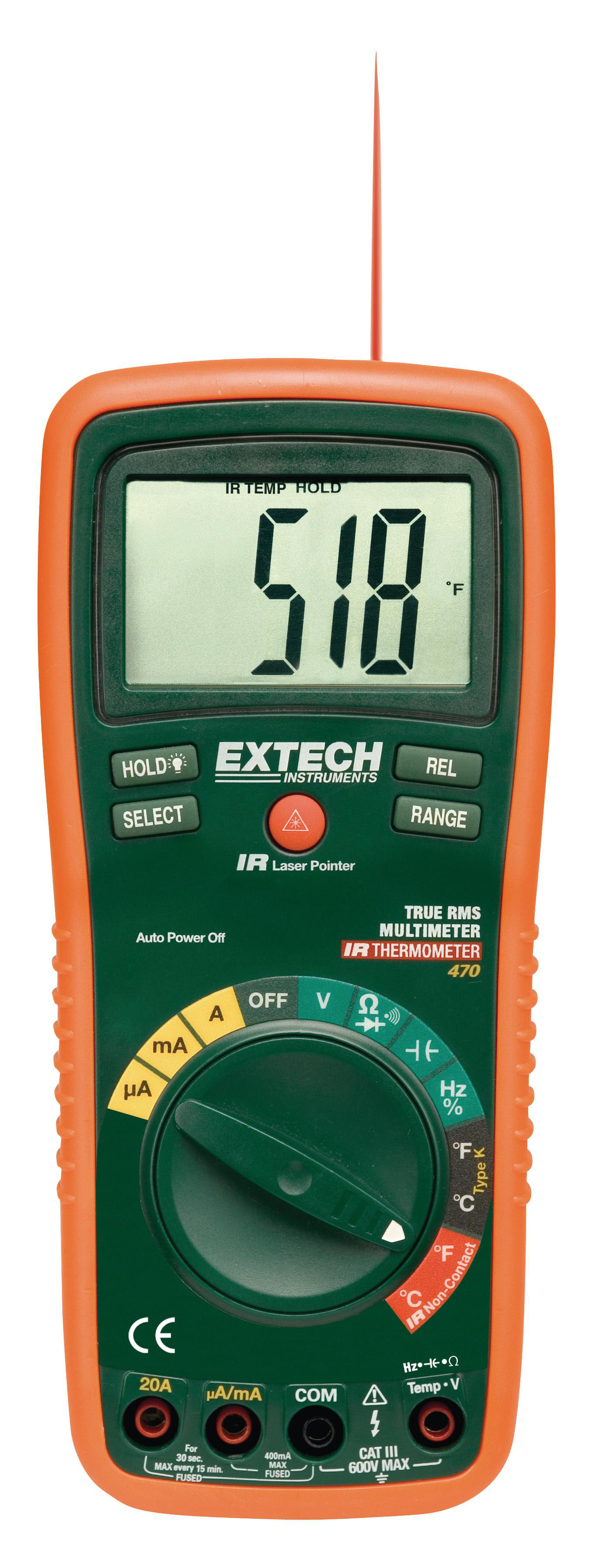

Extech EX470 Multimetru profesional TruRMS si Termometru Infrarosu

Cod: Extech EX470




Brosura produs PDF, 0.34 Mb

Descriere

True RMS, autoranging DMM with large digit LCD display and Type-K/IR temperature function

The Extech EX470 True RMS Multimeter and Infrared Thermometer with Capacitance, Frequency, and Duty Cycle Measurements and 2 K-Type Remote Probes is the perfect meter for HVAC or plant maintenance. The IR thermometer measures the surface temperature from -4 to 518 degrees Fahrenheit (-20 to 270 degrees Celsius) without contact. The built-in laser pointer centers the measuring area. Multimeter functions include AC and DC Voltage to 600 Volt, AC and DC current to 20 Amp, resistance to 40M, continuity and diode test. Also includes Type K thermometer for contact or air temperature measurements from -4 to 1832 degrees Fahrenheit (-20 to 750 degrees Celsius). Advanced functions include Capacitance, Frequency and Duty Cycle. The meter comes complete with test leads, Type K temperature probe, 9 Volt battery, protective holster, adjustable tilt stand and Velcro hanging strap.



Features:

  • True RMS DMM with 12 functions and 0.3% basic accuracy
  • AC/DC Voltage & Current, Resistance, Capacitance, Frequency, TypeK & IR Temperature, Diode/Continuity, Duty Cycle
  • Built-in non-contact InfraRed Thermometer with 8:1 distance to target ratio with 0.95 fixed emissivity
  • Input fuse protection and mis-connection warning
  • 20A max Current
  • Type K temperature measurements
  • Data hold, Relative, Auto power off
  • Large-digit backlit LCD
  • Complete with CAT III test leads, tilt stand, protective holster, velcro hanging strap, Type K bead wire temp probe and 9V battery
