Extech PQ3450-2 Analizor putere 200A cu Dtalogging Power Analyzer

Cod: Extech PQ3450-2




Brosura produs PDF, 0.47 Mb

Descriere

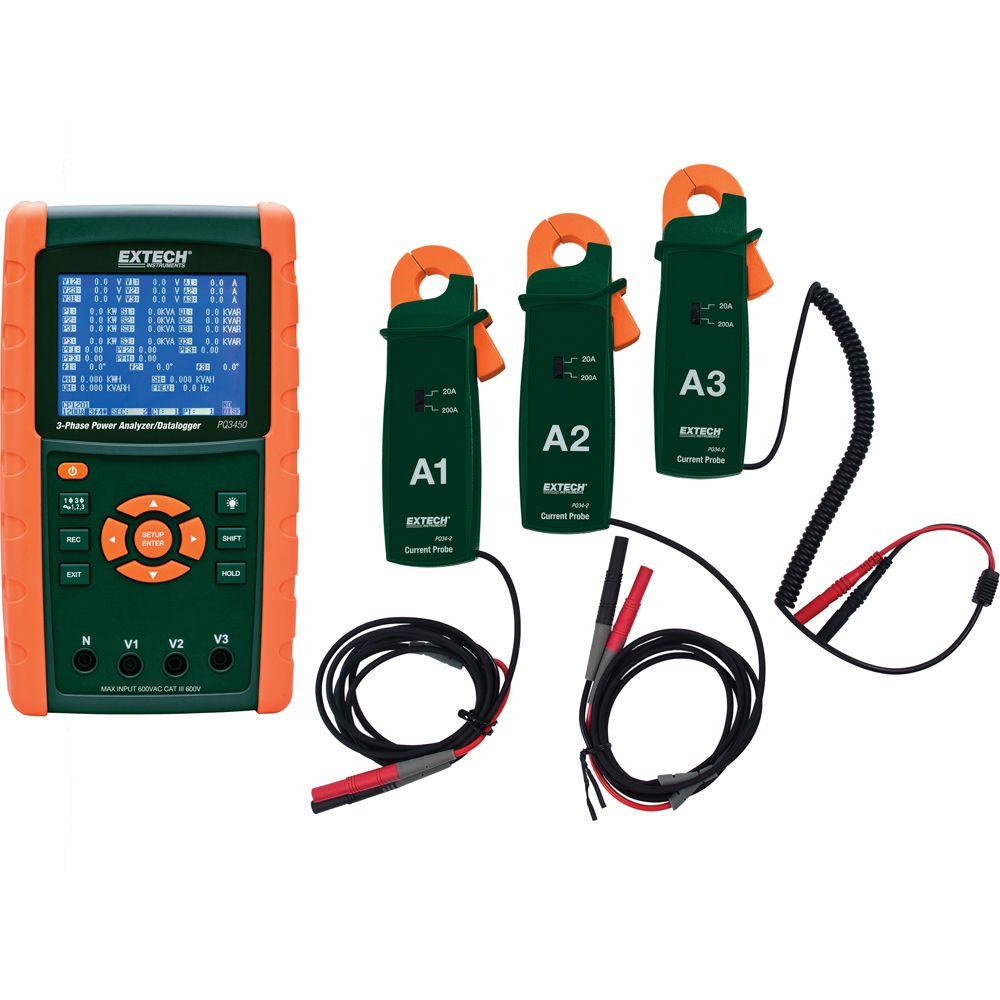

The PQ3450-2 is a 200 Amp Datalogging Power Analyzer (up to 30,000 sets of measurements). Large dot-matrix, sun-readable, numerical, backlit LCD with easy-to-use onscreen menu. Full system analysis with up to 35 parameters. Includes 200 Amp Current Clamps; Optional 1200 Amp Current Clamps or 3000 Amp Flexible Current Probes. Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems. Log up to 30,000 reading on a removable SD memory card in Excel® format. Wide sampling rate range (2 seconds to 2 hours). Built-in Clock and Calendar. Complete with 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240V AC adapter and case.

Features:

  • Large dot-matrix, sun-readable, numerical, backlit LCD with easy-to-use onscreen menu
  • Full system analysis with up to 35 parameters:
    • V (phase-to-phase), V (phase-to-ground)
    • A (phase-to-ground)
    • KW / KVA / KVAR / PF (phase)
    • KW / KVA / KVAR / PF (system)
    • KWH / KVAH / KVARH / PFH (system)
    • Phase angle
  • Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems
  • Log up to 30,000 reading on a removable SD memory card in Microsoft Excel® format
  • Wide sampling rate range (2 seconds to 2 hours)
  • Built-in Clock and Calendar
  • Complete with 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240V AC adaptor and case.
