Extech SDL400 Luxmetru cu inregistrare Datalogging

Cod: Extech SDL400




Brosura produs PDF, 0.14 Mb

Descriere

Records data on an SD card in Excel® format

The SDL400 records data on an SD card in Excel format. Wide range to 10,000Fc or 100kLux. Cosine and color-corrected measurements. Utilizes precision silicon photo diode and spectral response filter. Offset adjustment used for zero function to make relative measurements. Adjustable data sampling rate. Stores 99 readings manually and 20M readings via 2G SD card. Type K/J Thermocouple input for high temperature measurements. Large backlit LCD display. Record/Recall Min, Max, Data Hold and Auto power off. Complete with 6 x AA batteries, SD card, hard carrying case and light sensor with protective cover.



Features:

·         Wide range to 10,000Fc or 100kLux

·         Cosine and color-corrected measurements

·         Utilizes precision silicon photo diode and spectral response filter

·         Offset adjustment used for zero function to make relative measurements

·         Adjustable data sampling rate

·         Stores 99 readings manually and 20M readings via 2G SD card

·         Type K/J Thermocouple input for high temperature measurements

·         Large backlit LCD display

·         Record/Recall MIN, MAX, Data Hold and Auto power off

·         Complete with 6 x AA batteries, SD card, hard carrying case and light sensor with protective cover



Alte produse EXTECH

EXTECH DT500 TELEMETRU LASER DISTANTA 70M CU BLUETOOTH

• Integrated Bluetooth® connects with iOS devices to transmit readings for remote viewing
• Works with free Apple app to display large easy-to-read values up to 30ft (10m) away
• Measures up to 229ft (70m) with a target plate
• Automatically calculates Area and Volume
• Indirect measurement using Pythagorean Theorem
• Continuous measurement function with Min/Max distance tracking updates every 5 seconds


EXTECH MO55 TESTER UMIDITATE UMIDOMETRU

• Displays moisture level in wood and building materials such as wall board, sheet rock, cardboard, plaster, concrete, and mortar
• Pinless moisture measurement depth to <1" (25mm)
• Audible Alert - Tone rate beeps faster as the moisture level increases
• Icons display low, medium and high levels of moisture content
• Easy-to-use, compact-sized design



EXTECH HW30 CRONOMETRU TEMPERATURA-UMIDITATE HEATWATCH™

• User adjustable Heat Index alarm
• Stopwatch/chronograph mode with 1/100 second resolution
• Fastest/Slowest/Average Lap recall
• 99 lap counter with 30 lap/split memory
• 10 hour countdown timer with audible beeper warning for the last 5 seconds
• Programmable alarm
• Calendar mode displays day, month, and date



EXTECH DL160 INREGISTRATOR DATALOGGING CU 2 CANALE TENSIUEN SI CURENT AC TRUE RMS

• Simultaneously measure two AC Voltage inputs or two AC Current inputs or one AC Voltage and one AC Current input
• Readings can be downloaded to your PC via the USB interface and analyzed using the included software or exported to a spreadsheet
• LCD indicates time/date, current readings and Min/Max
• Auto Power off and battery check



EXTECH CO10: CARBON MONOXIDE (CO) METER

• Easy to read 1999 count backlit displays CO levels from 0 to 1000ppm
• 1ppm resolution with ±5% or ±10ppm basic accuracy (whichever is greater)
• Utilizes a stabilized electrochemical gas specific (CO) fast response sensor
• Audible alarm starts at 35ppm
• Backlight for low light conditions



EXTECH 480826 TESTER CAMP ELECTROMAGNETIC PE TREI AXE

• Three axis (X, Y, Z direction) electromagnetic field measurement
• Ideal for EMF measurements around power lines, electrical appliances and industrial devices
• Wide measuring ranges (3 ranges of µTesla or mGauss)
• Big digit LCD display, Data hold
• Easy to use remote probe
• Complete with sensor with 3ft (930mm) cable, 9V battery, and hard carrying case



EXTECH DL150 INREGISTRATOR DATALOGGER DE TENSIUNE AC TRUE RMS

• Measure True RMS AC Voltage (600V) or Current (200A)
• Readings can be downloaded to your PC via the USB interface and analyzed using the included software or exported to a spreadsheet
• LCD indicates time/date, current readings and Min/Max
• Normal, Peak and Capture (user-specified trigger level) recording modes

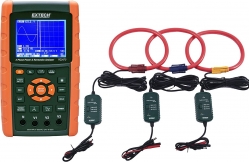

EXTECH PQ3470 ANALIZOR TRIFAZAT PUTERE SI ARMONICI CU GRAFICE SI DATALOGGING
