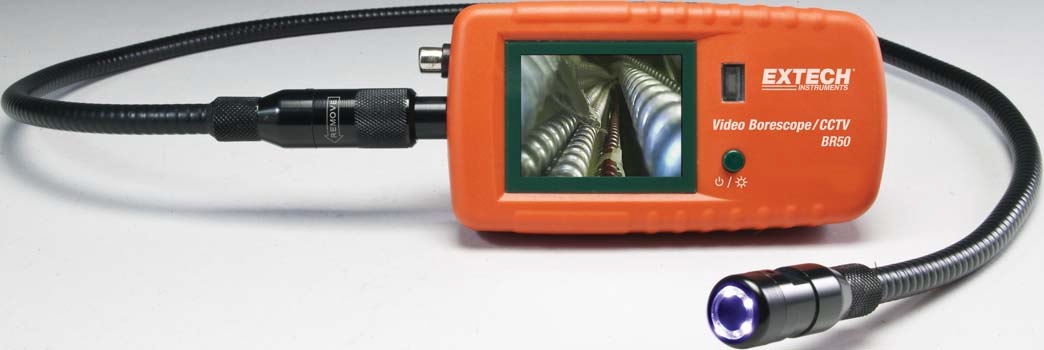

Boreoscop inspectii video Extech BR50

Cod: Extech BR50




Brosura produs PDF, 0.15 Mb

Descriere

  • 17mm camera diameter and 2.4" Color TFT LCD Monitor
  • 17mm diameter camera head with 39" (1m) flexible gooseneck cable retains configured shape
  • Four LED lamps with five brightness levels illuminate the viewed object
  • Glare-free close-up field of view with 480 x 234 pixel display
  • Automatically detects NTSC and PAL cameras
  • Complete with rechargeable Lithium battery, and Universal AC adapter/charger with USB cable



Applications:

• Home inspection: Inspect in walls for mold, insect infestation, electrical wire or water pipe location

• HVAC: Inspect inside ducts, behind motors and compressors

• Automotive: View inside or around engines and transmissions

• Government: Safety and security inspections

• Industrial: Inspect weld integrity, process equipment, gears, molding machines

• Aerospace: Aircraft inspections for contamination, debris, cracks or other damage



Accesorii standard

rechargeable Lithium battery, and Universal AC adapter/charger with USB cable


Optiuni recomandate

BR50 ...............Video Borescope/Camera Tester

BRC-17CAM....Replacement 17mm Camera tip with cable

BRC-EXT .........Borescope Extension Cable (19mm diameter/0.95m cable)
