Extech EX320 Multimetru cu 8 functii si detector tensiune fara contact

Cod: Extech EX320




Brosura produs PDF, 0.28 Mb


Descriere

Autoranging DMM with NCV detector

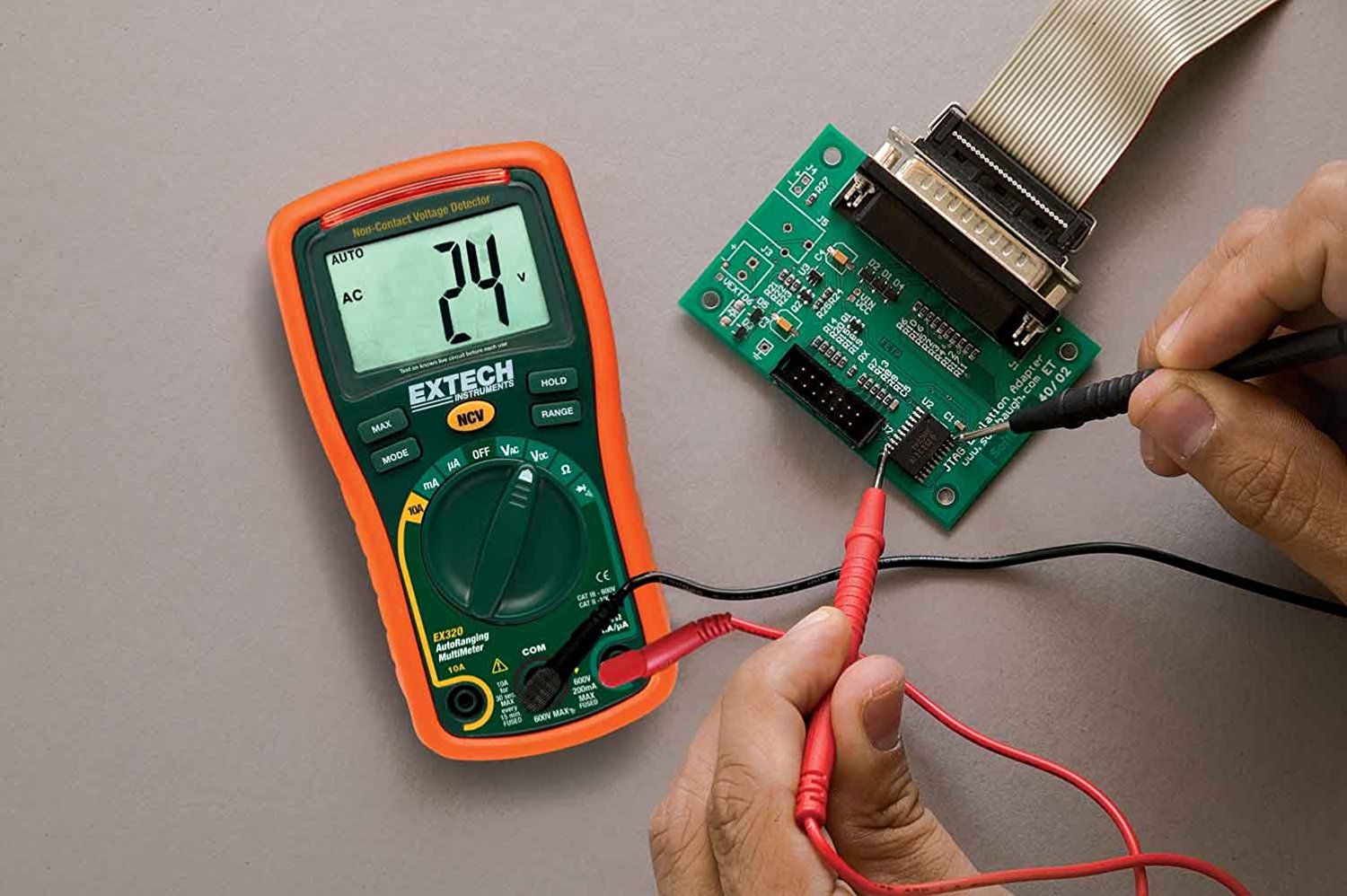

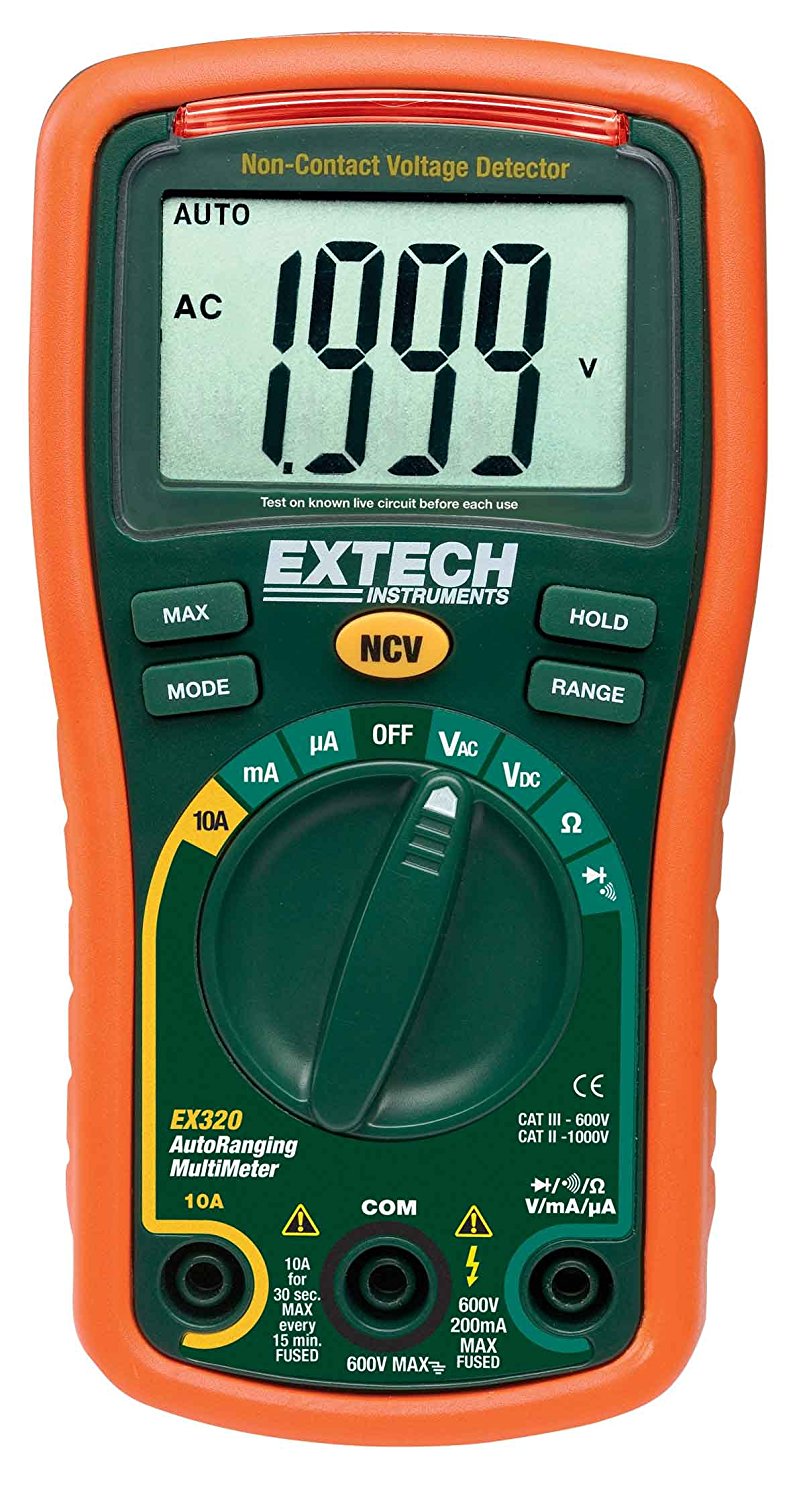

The Extech EX320, a compact auto ranging multi meter, features extra-large 2000 count display and built-in non-contact AC Voltage detector. Continuity, diode test and Max Hold functions. AC/DC Voltage & Current, and Resistance measurements. Rubber holster protects meter. UL listed Cat III - 600 Volt. Includes test leads, two AA batteries and tilt stand.



Features:

  • Autoranging DMM with 8 functions and 0.5% basic accuracy
  • AC/DC Voltage & Current, Resistance, Diode/Continuity

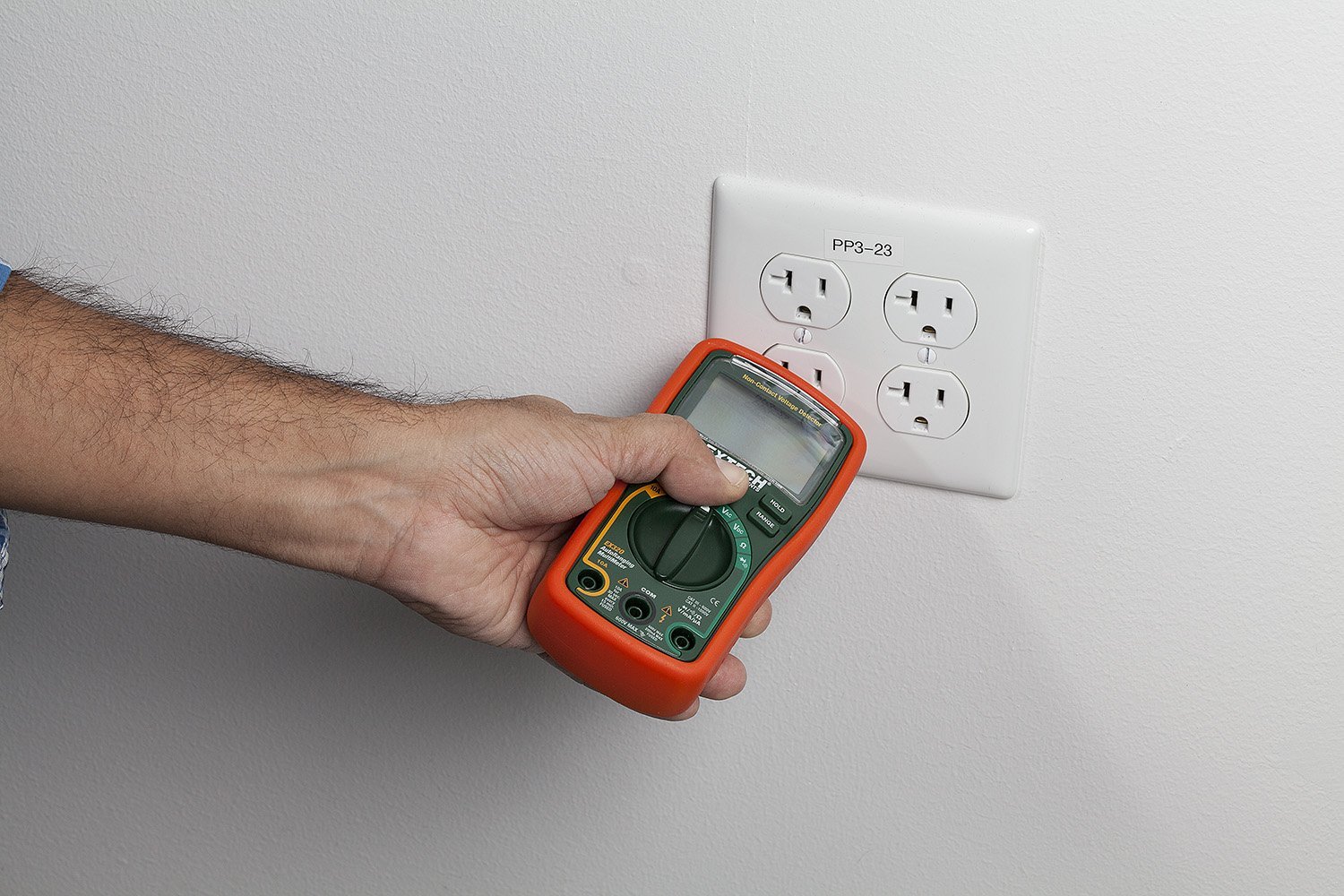

  • Built-in non-contact AC voltage detector (NCV) with red LED indicator and audible beeper
  • Large-digit 2,000 count LCD display
  • 10A max Current
  • Max Hold, Data Hold, Relative and Auto power off
  • Complete with test leads, tilt stand, protective holster and 2 AAA batteries
