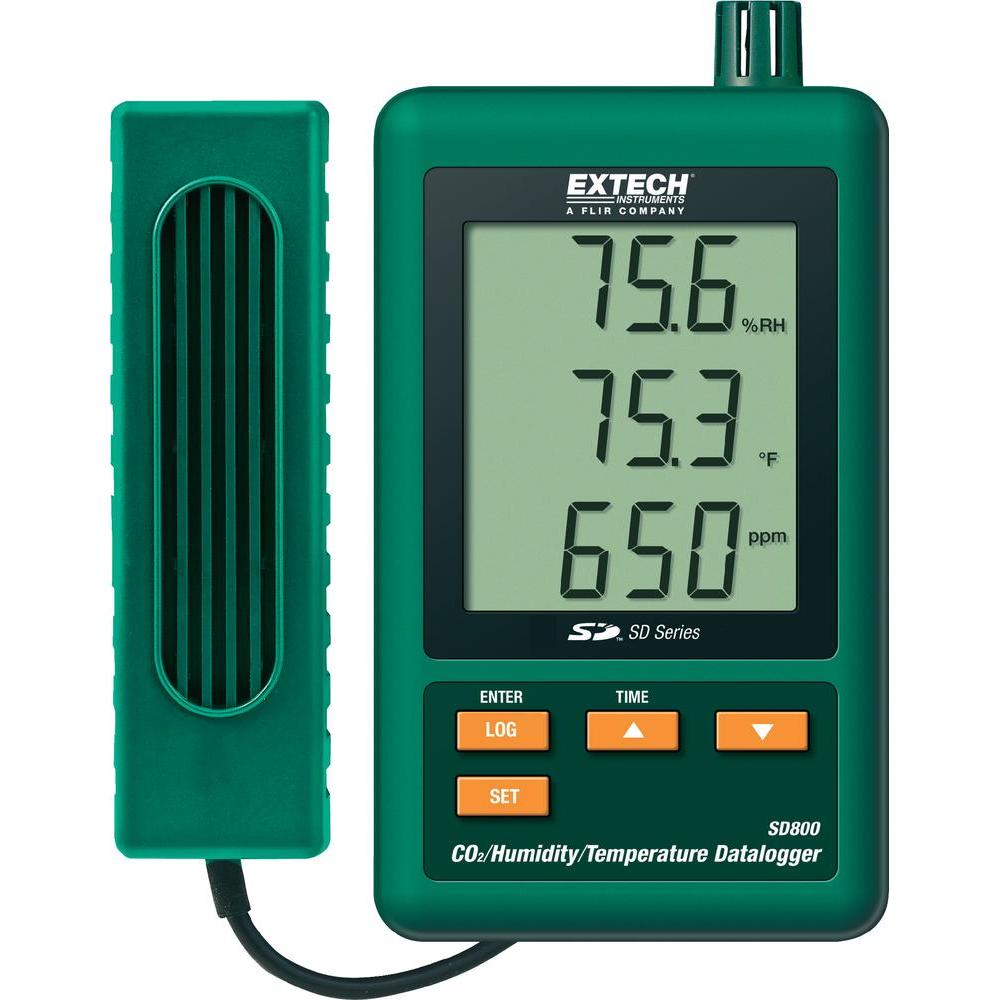

Extech SD800 Tester CO2, Umiditate si Temperatura cu Datalogging

Cod: Extech SD800




Brosura produs PDF, 0.19 Mb

Descriere

Records data on an SD card in Excel® format

SD800 monitors air quality in schools, office buildings, greenhouses, hospitals and anywhere that high levels of carbon dioxide are generated. Selectable data sampling rate of 5, 10, 30, 60, 120, 300, 600 seconds or automatic. Maintenance free dual wavelength NDIR (non-dispersive infrared) CO2 sensor. Triple LCD simultaneously displays CO2, Temperature and Relative Humidity. Complete with six AAA batteries, 2G SD memory card, universal AC adaptor, and mounting bracket.

  • Checks for Carbon Dioxide (CO2) concentrations
  • Maintenance free dual wavelength NDIR (non-dispersive infrared) CO2 sensor
  • Triple LCD simultaneously displays CO2 , Temperature and Relative Humidity
  • Measurement ranges: CO2 - 0 to 4,000ppm; Temperature - 32 to 122°F (0 to 50°C); Humidity - 10 to 90%RH
  • Datalogger stores readings on an SD card in Excel® format for easy transfer to a PC
  • Selectable data sampling rate: 5, 10, 30, 60, 120, 300, 600 seconds or Auto
  • Complete with six AAA batteries, 2G SD memory card, universal AC adaptor, and mounting bracket

Specifications

Range

CO2

0 to 4,000ppm

Accuracy

±40ppm ( <1000ppm); ±5% rdg (>1000ppm)

Resolution

1ppm

Temperature

32 to 122°F (0 to 50°C)

Accuracy

±1.8°F/0.8°C

Resolution

0.1°F/°C

Humidity

10 to 90%

Accuracy

±4%RH

Resolution

0.1%

Datalogging

20M data using 2G SD memory card

Dimensions

5.2 x 3.1 x 1.3" (132 x 80 x 32mm)

Weight

9.9oz (282g)
