Extech MA140 Cleste de curent True RMS 300A AC

Cod: Extech MA140




Brosura produs PDF, 0.39 Mb

Descriere

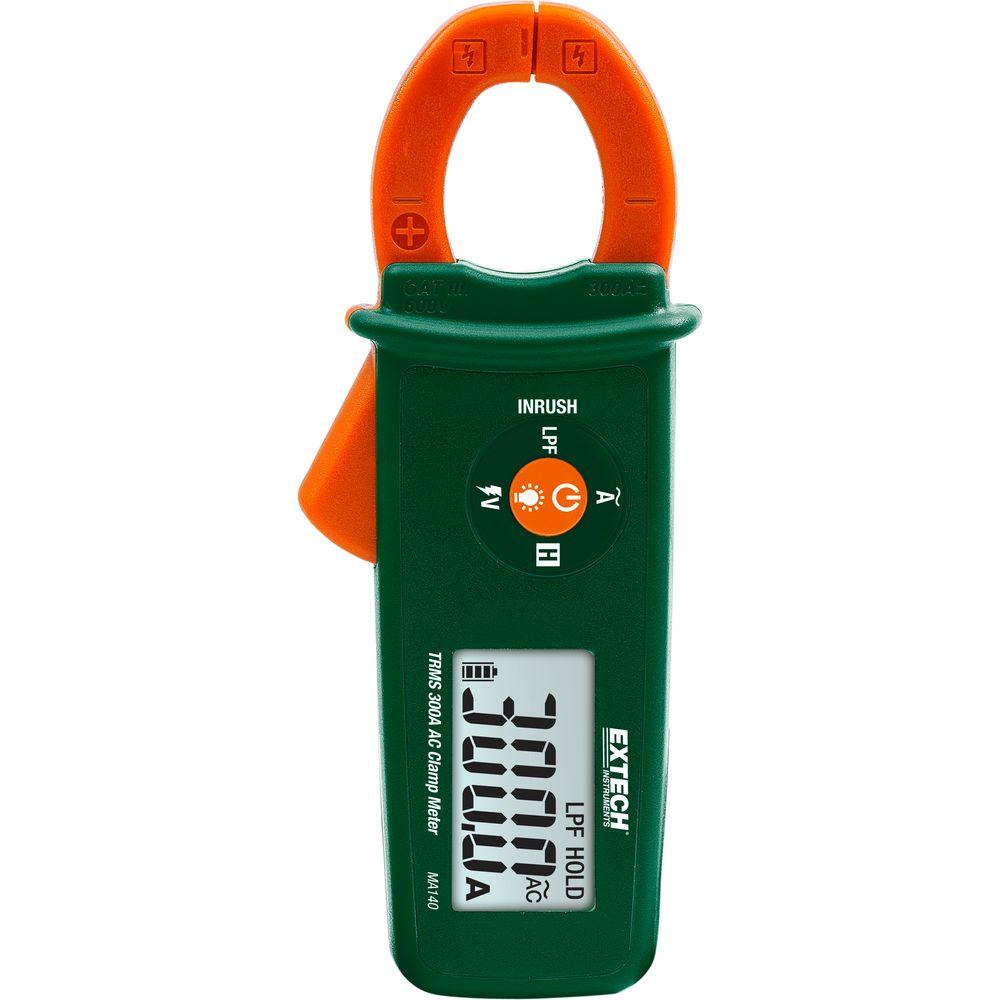

Compact AC Clamp Meter with NCV Detector

The MA140 is a Compact AC Clamp Meter with NCV Detector. This Clamp meter takes True RMS measurements for accurate readings of noisy, distorted or non-sinusoidal waveforms. The MA140 can measure up to 300A AC. Complete with carrying case and two LR44 batteries. UL listed with a CAT III 600V safety rating.



·         True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms

·         Compact 0.8" (22mm) jaw size accommodates conductors up to 300MCM and allows measurements in tight locations

·         Unique Smart Auto Sense feature

·         Low Pass Filter (LPF) for accurate measurement of variable frequency drive signals

·         Built-in Non-Contact Voltage (NCV) detector for quick detection of live voltage

·         Inrush current measurement

·         6000 count backlit LCD display

·         Smart Data Hold: Audiovisual alert when a new reading exceeds 50 digits of a held reading

·         Low battery indicator and Auto Power Off feature

·         Complete with carrying case and two LR44 batteries
