Extech EX230 Mini-multimetru digital cu 12 functii si temperatura Infrarosu

Cod: Extech EX230




Brosura produs PDF, 0.35 Mb

Descriere

Averaging, autoranging DMM with 4000 count large backlit dual LCD

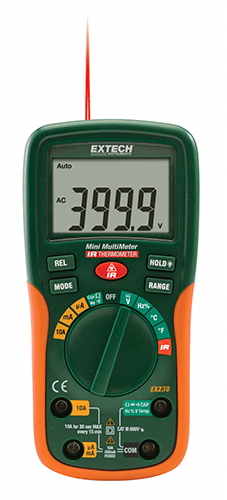

The EX230 Mini Digital MultiMeter with built-in IR Thermometer can quickly identify overheating motors and locate hot spots on electrical panels and HVAC vents without contact. The EX210’s rugged design incorporates a 4000 count large backlit dual LCD with easy-to read digits, low current capability measure down to 0.1µA, and input fuse protection. The built-in IR Thermometer has a 6:1 distance to target ratio. This meter also features Type K Temperature, Frequency, Capacitance and Duty Cycle measurement; relative function and data hold capabilities as well as auto power-off. The EX230 comes complete with test leads, Type K Temperature bead probe and a 9V battery.

Features:

  • Built-in IR Thermometer with laser pointer for locating hot spots (6:1 Distance to Target Ratio)
  • AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Temperature (Type K + IR), Duty Cycle, Continuity / Diode
  • 4000 count large backlit dual LCD with easy-to read digits
  • Low current capability measure down to 0.1µA
  • Data Hold, Relative Mode and Auto power off
  • Input fuse protection
  • Complete with test leads, general purpose bead wire temperature probe and 9V battery
