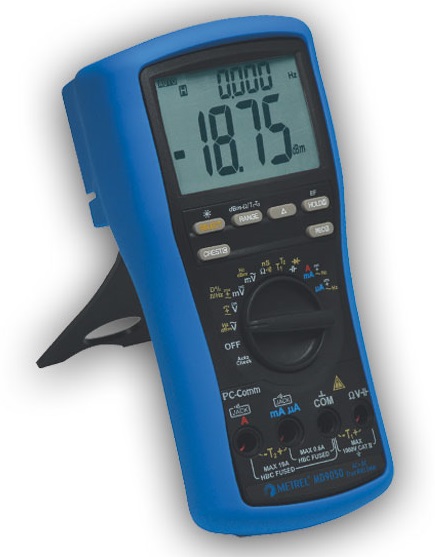

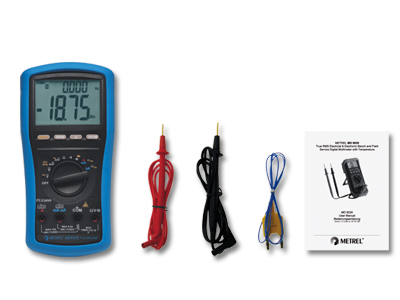

Metrel MD9050 Portable Digital High Resolution Multimeter MD-9050

• 1000V AC, DC voltage measurement;
• 8A AC, DC current measurement;
• 600O..60MO Resistance measurement;
• 60nF..3mF Capacitance measurement;
• 5Hz..1MHz Frequency Measurement
• Temperature measurement(thermocouple type K included)



• Field proven instrument for under-wall low voltage installation tracing
• fuse finding
• short-circuit spot determination and metal installation tracing
• Can be used on energized or voltage-free systems.
• Tips and detailed descriptions of connection schemes for various combinations from everyday practice.



• Earth bond / continuity resistance (200 mA, 10 A)
• Insulation resistance
• Insulation resistance of isolated accessible conductive parts
• Substitute leakage current
• Substitute leakage current of isolated accessible conductive parts
• Differential leakage current
• Touch leakage current
• IEC cord polarity test



• insulation resistance,
• PE conductor continuity test,
• Line and Loop esistances with Fuse evaluation table built-in,
• RCD test with Trip lock function,
• phase sequence in 3-phase systems,
• on-line voltage monitor,
• 2-wire and 3-wire Earth resistance test with built-in battery operated generator,
• earth resistance test with Two Clamps method,
• Leakage Current test,
• test of Luminance with optional LUX meter probe



• Insulation resistance with DC voltage
• Continuity of PE conductors with 200 mA test current with polarity change
• Continuity of PE conductors with 7 mA test current (continuous measurement) without RCD tripping
• Line impedance
• Loop impedance
• Loop impedance with Trip Lock RCD function
• TRMS voltage and frequency
• Phase sequence
• RCD testing (general and selective, type AC, A and B)
• Earth resistance (3-wire method).



• Voltage testing up to 1000 V
• Automatic AC/DC recognition
• Continuity buzzer and led to indicate resistances below 500 k?
• Phase & Rotating Field Test
• RCD trip testing
• Diode Test
• Auto Power Off



• Bidirectional resistance measurement from 0,1 µO up to 2000 O
• test current up to 10 A
• Highly efficient 10 A current source generates 10 A into 200 mO load for 15 min without overheating
• High overvoltage protection (CAT IV / 300 V)
• Custom limits can be set for PASS / FAIL evaluation of test result.
• 50 Hz / 60 Hz ripple detection and rejection.
• Instrument can be powered from mains or internal rechargeable battery.
• Up to 1000 test results with timestamp can be stored in internal memory.
• PC SW HVLink PRO enables downloading, review, analyses and printing of test results.



• Five pre-set test voltages: 250V, 500V, 1000V, 2500V and 5000V
• up to 1 T? for insulation resistance
• 600 V for voltage measurements
• Quick setting - Quick & Easy test voltage selection
• Faster testing - 5 mA current source for quick charging of capacitive loads
• Safe - High CAT IV, 600 V voltage protection
• Easy to read - Large, bright LCD display with backlight



• Complete representation of a real low voltage installation in industrial and residential areas
• sockets,
• electrical loads,
• lightning,
• earthing systems for TT, TN and IT types of installations.
• 65 different measurements according to IEC/EN61557 are supported.
• Fault situation simulation switches can generate 19 errors or combination of these
• Detailed instruction manual with profound explanation of all typical measurements.



• Pre-set test voltages: 250V...5000V
• Automated testing - PI, DD, DAR calculations with automated resistance ranging (AR)
• Fault finding
• R(t) graph - Real time resistance against time graph plotting facility
• Faster testing - High 5 mA charging current quickly charges capacitive loads.
• Accurate
• Safe - High CAT IV, 600 V voltage protection
