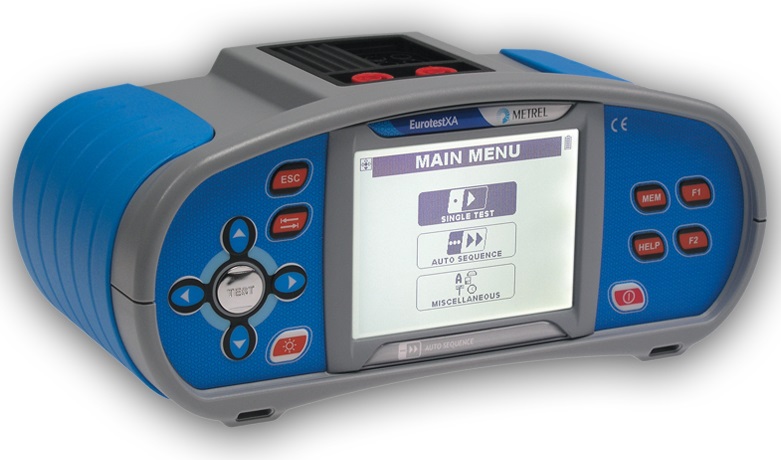

Metrel MI3105 Electrical Instalation Tester for Insulation Resistance, Continuity, Earth Test MI 3105 EUROTEST XA

Code: Metrel MI3105 MI-3105 EUROTEST XA



Datasheet PDF, 2.54 Mb


Description

The fifth generation of Metrel’s multifunction ele. installation testers brought know-how in the testing procedures to reality. Because of the need to be efficient, faster and competitive but still responsible and concentrated on safety, all the technical content and innovations under AUTO SEQUENCE ®, rotate around taking care about testing procedures itself.



MEASURING FUNCTIONS

  • insulation resistance,
  • PE conductor continuity test,
  • Line and Loop esistances with Fuse evaluation table built-in,
  • RCD test with Trip lock function,
  • phase sequence in 3-phase systems,
  • on-line voltage monitor,
  • 2-wire and 3-wire Earth resistance test with built-in battery operated generator,
  • earth resistance test with Two Clamps method,
  • Leakage Current test,
  • test of Luminance with optional LUX meter probe





OTHER FEATURES

AUTO SEQUENCE ® - Enhanced test performance, patented by Metrel - one programmable procedure with several Single Tests in sequence.

Additional features:

  • Clearly visible information on big 320x240 dots matrix display with backlight,
  • Locator function enables tracing fuses, lines and faults. Precise inductive mode,
  • Date and time, connected to each saved result,
  • Permanent mounted Insulation Monitoring Devices on IT systems testing. With check of the ISFL (First Fault Leakage Current),
  • On-line voltage monitor shows voltage levels for L-L, L-N and L-PE during the measurement,
  • Fast and reliable accurate Loop L-PE resistance measurement without RCD tripping,
  • Built-in Fuse characteristics database for quick evaluation of measuring results at LINE/LOOP impedance testing,
  • Field proven Earth resistance measuring method which eliminates stray earth currents during the measurement.
    TN/TT/IT Earthing System support,
  • Multi-functional schuko Plug commander for faster execution of a measuring sequence,
  • QUERTY keypad built-in for creating names in installation's structure,
  • Built-in internal memory with professional organized structure with up to 2000 locations,
  • PC SW Eurolink is a strong creating tool of professional Visual Inspection Report and Testing Result Report,
  • Rechargeable battery pack with a charger is included in a standard set.





SOFTWARE

PC SW EuroLink PRO is a strong creating tool of professional Visual Inspection Report and Testing Result Report.



TECHNICAL DATA

Dimensions (w x h x l): 230 x 103 x 115 mm.
Mass (without accessories): 1.3 kg.



Standard accessories

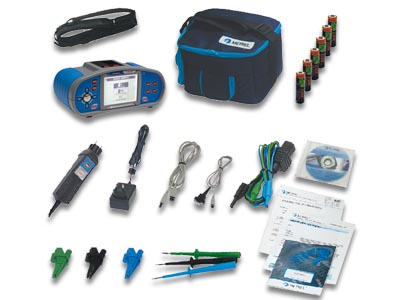

MI 3105 Standard set MI 3105 ST

  • Instrument EurotestXA
  • PC Software EuroLink PRO
  • Plug commander, 1.5 m
  • Test lead, 3 x 1.5 m
  • Power supply adapter + 6 NiMH rechargeable batteries, type AA
  • Test probe, 3 pcs (blue, black, green)
  • Crocodile clip, 3 pcs (blue, black, green)
  • RS232 - PS/2 cable
  • USB cable
  • Soft carrying bag
  • Soft carrying neck belt
  • Short instruction manual
  • Instruction manual on CD
  • Handbook on CD
  • Calibration certificate

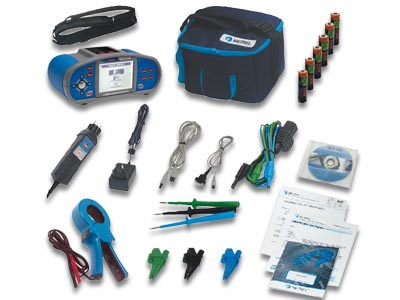

MI 3105 Euro set MI 3105 EU

  • Instrument EurotestXA
  • Current clamp A 1018 (low range, leakage)
  • PC Software EuroLink PRO Plus
  • Plug commander, 1.5 m
  • Test lead, 3 x 1.5 m
  • Power supply adapter + 6 NiMH rechargeable batteries, type AA
  • Test probe, 3 pcs (blue, black, green)
  • Crocodile clip, 3 pcs (blue, black, green)
  • RS232 - PS/2 cable
  • USB cable
  • Soft carrying bag
  • Soft carrying neck belt
  • Short instruction manual
  • Instruction manual on CD
  • Handbook on CD
  • Calibration certificate
