Metrel MI3121 Insulating Resistance Megohmmeter and Continuity

Code: Metrel MI3121 MI-3121




Datasheet PDF, 0.37 Mb


Description

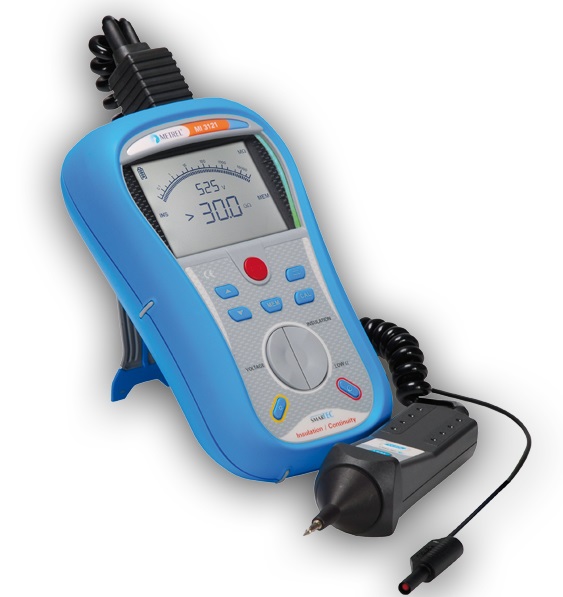

MI 3121 SMARTEC Insulation / Continuity for verification, maintenance and periodic testing of electrical installations; PE conductors, main and supplementary PE connections, troubleshooting, insulation resistance, observation of insulation trends and insulation of control, signal, telecom wiring (50 V, 100 V). Suitable for testing on CAT IV installations.



MEASURING FUNCTIONS

  • Very large LCD display with bargraph and backlight
  • High measuring range of up to 30 G? with test voltage from 50 V to 1000 V
  • Fast and reliable continuity tests with automatic polarity reversal
  • Voltage and frequency measurements
  • Preprogrammed limits
  • PASS/FAIL evaluation of result
  • Bright GREEN/RED indicators provides visual evaluation of results
  • Suited for testing on CAT IV installations
  • Magnetic holder allowes hands-free operation
  • Built-in battery charger
  • Two level memory structure for saving of test results and parameters
  • Basic downloading with EuroLink PRO PC SW package
  • Compatible with EuroLink PRO Plus PCSW package
  • USB and RS232 ports
  • Robust and ergonomic design



TECHNICAL DATA

Dimensions (w x h x l): 140 x 80 x 230 mm

Mass (without accessories): 0,80 kg





Standard accessories

MI 3121 Standard set MI 312

  • Instrument Smartec Insulation / Continuity
  • Soft hand strap
  • Test lead, 2 x 1.5 m
  • Test probe, 2 pcs (black, red)
  • Crocodile clip, 2 pcs (black, red)
  • Power supply adapter + 6 NiMH rechargeable batteries, type AA
  • Instruction manual on CD
  • Short instruction manual
  • Handbook on CD
  • Calibration certificate
