Metrel MI3122 SMARTEC Z RCD Loop/ Line Impedance Short-circuit Current Tester

Code: Metrel MI3122 MI-3122 SMARTEC-Z




Datasheet PDF, 0.34 Mb


Description

MI 3122 SMARTEC Z Line-Loop / RCD for verification, maintenance and periodic testing of electrical installations; evaluation of protective measures in LV-installations, troubleshooting on live installations. Suitable for testing on CAT IV installations.



MEASURING FUNCTIONS

  • Supports all live tests on LV electrical circuits:

            - Loop impedance / prospective fault current
            - Line impedance / prospective short-circuit current

  • Built-in fuse characteristics for quick evaluation of measuring results
  • RCD tests (trip out time, contact voltage, ramp test, Autotest)
  • Testing on 1- and 3-phase systems
  • Phase sequence test
  • Metal test button for touch voltage detection
  • High accuracy non tripping loop test for RCD protected circuits
  • Pre-programmed limits
  • PASS/FAIL evaluation of result
  • Bright GREEN/RED indicators provides visual evaluation of results
  • Suited for testing on CAT IV installations
  • Magnetic holder allowes hands-free operation
  • Built-in battery charger
  • Two level memory structure for saving of test results and parameters
  • Basic downloading with EuroLink PRO PC SW package
  • Compatible with EuroLink PRO Plus PCSW package
  • USB and RS232 ports
  • Robust and ergonomic design



TECHNICAL DATA

Dimensions (w x h x l): 140 x 80 x 230 mm

Mass (without accessories): 0,93 kg



Standard accessories

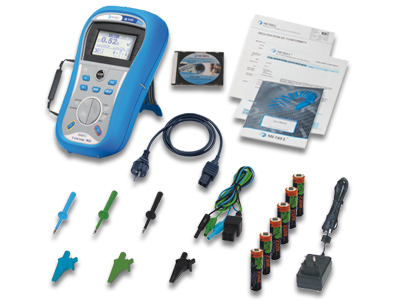

MI 3122 Standard set MI 3122

  • Instrument Smartec Z Line - Loop / RCD
  • Soft hand strap
  • Schuko-plug test cable
  • Test lead, 3 x 1.5 m
  • Test probe, 3 pcs (blue, black, green)
  • Crocodile clip, 3 pcs (blue, black, green)
  • Power supply adapter + 6 NiMH rechargeable batteries, type AA
  • Instruction manual on CD
  • Short instruction manual
  • Handbook on CD
  • Calibration certificate
