Metrel MI3309 DELTAGT Safety Analyzer for Portable Electrical Equipment

Code: Metrel MI3309 MI-3309 DELTAGT




Datasheet PDF, 0.38 Mb


Description

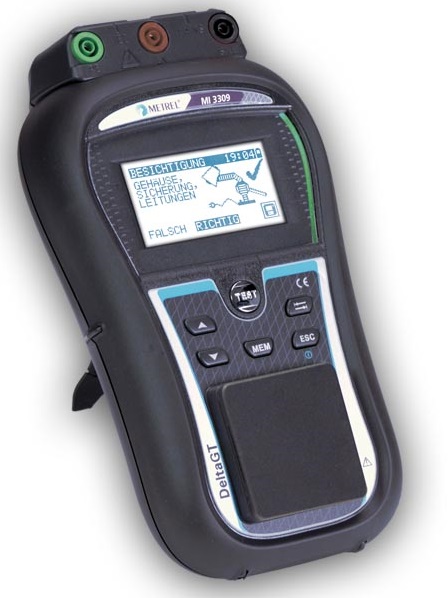

The new MI 3309 DeltaGT is both battery and mains powered multifunctional instrument intended to perform measurements for testing the electrical safety of portable electrical equipment.



MEASURING FUNCTIONS

  • Functional and visual inspection
  • Earth bond resistance
  • Insulation resistance
  • Insulation resistance of isolated accessible conductive parts
  • Substitute leakage current
  • Substitute leakage current of isolated accessible conductive parts
  • Differential leakage current test
  • Touch leakage test
  • PRCD test
  • Power test
  • IEC cord polarity test
  • TRMS voltage meter



OTHER FEATURES

  • Graphic LCD with resolution of 128 x 64 dots, with backlight.
  • The graphic display offers easy reading of results, indications, measurement parameters and messages.
  • Large green and red lights for additional PASS / FAIL indication placed at the sides of the LCD.
  • Large data flash memory for storing test results & parameters (about 1500 tests with parameters can be stored in average).
  • Two communication ports (USB and RS232C) for communication with PC, and barcode reader.
  • Built-in real time clock.
  • Bar-coding system for quick test code selection and identification of DUTProgrammable limits for PASS / FAIL evaluation.
  • Fully compatible with new Metrel PATLink PRO PC software package  (download, view, print and export of test results).
  • Optional PC SW PATLink PRO Plus (advanced test result analysis and professional  test report creation).
  • Portable and lightweight design.
  • Rechargeable battery powered instrument with built-in charging circuit.
  • The instrument can operate from mains power or batteries.



TECHNICAL DATA

Dimensions: 140 x 80 x 230 mm

Mass (without accessories): 1.2 kg



Standard accessories

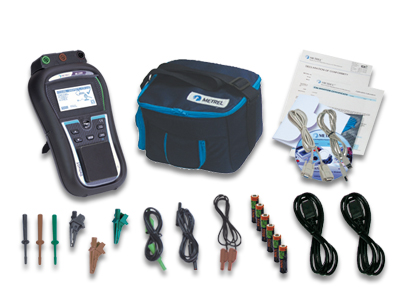

MI 3309 Standard set MI 3309

  • Instrument MI 3309 DeltaGT
  • Soft carrying bag
  • IEC cable, 2m
  • Test lead, brown, green, black, 1.5 m
  • Crocodile clip, brown, green, black
  • Test tip, brown, green, black
  • PC software PATLink PRO
  • RS232 cable
  • USB cable
  • Instruction manual
  • Short instruction manual
  • Calibration certificate
  • NiMH rechargeable batteries, type C, 6 pcs





More products METREL

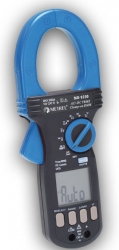

PRECISION CURRENT CLAMP METER TRUE RMS METREL MD 9250
