MI 3201 TeraOhm 5 kV insulation tester is a portable instrument intended to measure insulation resistance through the use of high voltage DC test voltages up to 5 kV. The large LCD screen allows real-time R(t) graphs to be displayed.

MEASURING FUNCTIONS

Automated testing - PI, DD, DAR calculations with automated resistance ranging (AR). All data is displayed during one single measurement.
Fault finding - Fully programmable step voltage and withstanding voltage test functions to assist in diagnosing faults in insulation.
R(t) graph - Real time resistance against time graph plotting facility to graphically illustrate the response of a material to an applied test voltage.
Faster testing - High 5 mA charging current quickly charges capacitive loads.
Accurate - Selectable noise rejection filters (up to 5 mA) and shielded cables as standard ensure accurate readings.
Safe - High CAT IV, 600 V voltage protection
Portable - Lightweight 3 kg design with carry handle and shoulder strap.

STANDARDS APPLIED

Instruments operation:
IEC/EN61557-2

Electromagnetic compatibility:
EN 61326 class B

Safety:
EN 61010-1 (instrument)
EN 61010-031(accessories)

TECHNICAL DATA

Dimensions (w x h x l): 310 x 130 x 250 mm

Weight (with batteries, without accessories): 3 kg

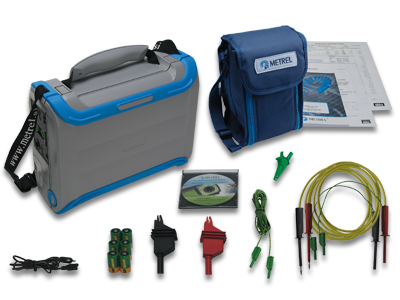

Standard accessories

MI 3201 Standard set MI 3201

Instrument TeraOhm 5 kV Plus
Small soft carrying bag
Mains cable
10 kV shielded test lead, black, 2 m
10 kV shielded test lead, red, 2 m
10 kV crocodile clip, 2 pcs (black, red)
Guard lead, green, 2 m
Crocodile clip, green
6 x 1.2 V NiMH rechargeable batteries, type C
Handbook on CD
Instruction manual
Calibration certificate
