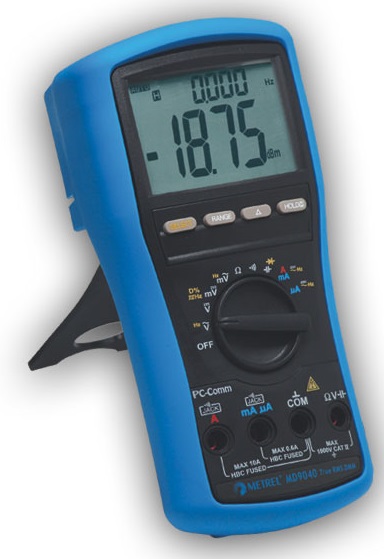

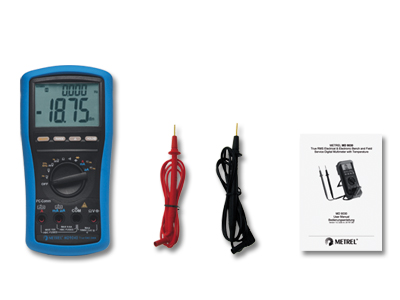

Metrel MD9040 Portable Digital Industrial Multimeter MD9040

• Complete representation of a real low voltage installation in industrial and residential areas
• sockets,
• electrical loads,
• lightning,
• earthing systems for TT, TN and IT types of installations.
• 65 different measurements according to IEC/EN61557 are supported.
• Fault situation simulation switches can generate 19 errors or combination of these
• Detailed instruction manual with profound explanation of all typical measurements.



• CAT IV/1000 V overvoltage category
• 1000V TRMS AC, DC voltage measurement;
• 10A TRMS AC, DC current measurement;
• 60nF..25mF Capacitance measurement;
• 600O..60MO Resistance measurement;
• Diode test;
• 5Hz..1MHz Frequency of digital signals measurement



• insulation resistance,
• PE conductor continuity test,
• Line and Loop esistances with Fuse evaluation table built-in,
• RCD test with Trip lock function,
• phase sequence in 3-phase systems,
• on-line voltage monitor,
• 2-wire and 3-wire Earth resistance test with built-in battery operated generator,
• earth resistance test with Two Clamps method,
• Leakage Current test,
• test of Luminance with optional LUX meter probe



• Resistance measurement: wide measuring range (1 nO ... 20 O)
• adjustable test current (100 mA ... 100 A)
• Voltage drop measurement
• Bar graph: on screen resistance bar graph
• protection level (CAT IV, 50 V)
• Portable
• High protection degree: IP 64.
• Accurate: 1 nO best resolution with 0.25% accuracy
• Custom limits: the limits can be set for PASS or FAIL evaluation of test result.
• Battery powered
• Downloadable: downloads test results via RS232 or USB cable directly to the PC with the help of the software.



• 110 V … 1000 V AC measurement range
• CAT III / 1000 V overvoltage protection
• visual display indicator



• Bidirectional resistance measurement from 0,1 µO up to 2000 O
• test current up to 10 A
• Highly efficient 10 A current source generates 10 A into 200 mO load for 15 min without overheating
• High overvoltage protection (CAT IV / 300 V)
• Custom limits can be set for PASS / FAIL evaluation of test result.
• 50 Hz / 60 Hz ripple detection and rejection.
• Instrument can be powered from mains or internal rechargeable battery.
• Up to 1000 test results with timestamp can be stored in internal memory.
• PC SW HVLink PRO enables downloading, review, analyses and printing of test results.



• Pre-set test voltages: 250V...5000V
• Automated testing - PI, DD, DAR calculations with automated resistance ranging (AR)
• Fault finding
• R(t) graph - Real time resistance against time graph plotting facility
• Faster testing - High 5 mA charging current quickly charges capacitive loads.
• Accurate
• Safe - High CAT IV, 600 V voltage protection



• Measurement of step voltage and contact voltage.
• Measurement of earthing resistance with resolution of 1 m?.
• Measurement of specific earth resistance.
• High current of up to 50 A and effective suppression of noise
• Excellent immunity even against changing earth currents.
• Autonomous Step Voltage meter: no need for long voltage leads.
• Downloads test results directly to the PC with the help of the professional PC SW package HVLink



• Single-phase Built-in Variable Auto-Transformers
• Three-phase Built-in Variable Auto-Transformers
• Motor driven Variable Transformers
• Desk top Variable Transformers



• Continuity test with 200 mA.
• Insulation resistance.
• Insulation resistance of isolated accessible conductive parts.
• Substitute leakage current.
• Substitute leakage current of isolated. accessible conductive parts.
• IEC cord polarity test.
• Voltage.
• Functional and visual inspection.
