EurotestXE is a typical representative from a new line of Metrel�s installation safety testers. Key advantages like a lightweight design and small dimensions are completed with extensive measurement features.

MEASURING FUNCTIONS

DC insulation resistance,
PE conductor continuity test,
Line and Loop resistances with Fuse evaluation table built-in,
RCD test with Trip lock function, phase sequence in 3-phase systems,
on-line voltage monitor,
3-wire Earth resistance test with built-in battery operated generator,
Leakage Current test,
test of Luminance with optional LUX meter probe.

OTHER FEATURES

Built-in internal memory for storing up to 500 measurements.
Field proven Earth resistance measuring method which eliminates stray earth currents during the measurement.
Fast and reliable Loop resistance measurement without
RCD tripping.
Built-in Fuse characteristics database for quick evaluation of measuring results at ZLINE measurement.
On-line voltage monitor shows voltage levels for
L-L, L-N and L-PE during the measurement
TN/TT/IT Multi System support
Multi-functional tip commander for faster execution
of a measuring sequence.
Rechargeable battery pack with a charger is included
in a Standard set.

SOFTWARE

PC SW EuroLink PRO is a strong creating tool of professional Visual Inspection Report and Testing Result Report.

TECHNICAL DATA

Dimensions (w x h x l): 230 x 103 x 115 mm

Mass (without accessories): 1.3 kg

Standard accessories

MI 3102 Standard set MI 3102

Instrument EurotestXE
Tip commander, 1.5 m
Schuko-plug test cable
Test lead, 3 x 1.5 m
Earth test set (test lead, 4 m; 2 x test lead, 20 m; 2 x test rod)
Power supply adapter + 6 NiMH rechargeable batteries, type AA
PC Software EuroLink PRO
Test probe, 3 pcs (blue, black, green)
Crocodile clip, 3 pcs (blue, black, green)
RS232 - PS/2 cable
USB cable
Soft carrying neck belt
Soft carrying bag
Short instruction manual
Instruction manual on CD
Handbook on CD
Calibration certificate

More products METREL

METREL MI3108 EUROTEST PV PHOTOVOLTAIC ANALYZER AND ELECTRICAL INSTALLATION SAFETY TESTER FOR SOLAR SYSTEMS

• Measurements on DC side of PV installation:
• Voltage, current, power, energy;
• Uoc (Open Circuit Voltage) and Isc (Short Circuit Current);
• I - U curve of PV modules and strings;
• Irradiance;
• Module temperature.
• Measurements on AC side of PV installation (power quality):
• Voltage, current, frequency, power, PF, energy, harmonics;
• Efficiency of PV module, inverter, PV system calculation.

METREL MI2142 ALPHA-PAT ELECTRICAL SAFETY ANALYZER CF. IEC EN VDE STANDARD

• Functional and visual inspection;
• Earth bond resistance;
• Insulation resistance;
• Substitute leakage current;
• Differential leakage current test;
• Touch leakage test;
• IEC cord polarity test;

LOW CURRENT LEAKAGE CLAMP METER METREL MD 9270

• TRMS AC voltage and current measurement.
• Frequency measurement.
• Power: measures various power parameters (active, reactive, apparent power, THD, PF, phase displacement).
• Intelligent loss analysis: complex algorithms detect loss and allow determining possible reasons for current loss.
• Harmonics: measures current or voltage harmonic components and a percentage value of a harmonic up to the 49th.
• Total Harmonic Distortion (THD)
• Power Factor (PF).

METREL MI3309 DELTAGT SAFETY ANALYZER FOR PORTABLE ELECTRICAL EQUIPMENT

• Functional and visual inspection
• Earth bond resistance
• Insulation resistance
• Insulation resistance of isolated accessible conductive parts
• Substitute leakage current
• Substitute leakage current of isolated accessible conductive parts
• Differential leakage current test
• Touch leakage test
• PRCD test

METREL MI3250 PRECISION RESISTANCE MICROOHMMETER 10A

• Bidirectional resistance measurement from 0,1 µO up to 2000 O
• test current up to 10 A
• Highly efficient 10 A current source generates 10 A into 200 mO load for 15 min without overheating
• High overvoltage protection (CAT IV / 300 V)
• Custom limits can be set for PASS / FAIL evaluation of test result.
• 50 Hz / 60 Hz ripple detection and rejection.
• Instrument can be powered from mains or internal rechargeable battery.
• Up to 1000 test results with timestamp can be stored in internal memory.
• PC SW HVLink PRO enables downloading, review, analyses and printing of test results.

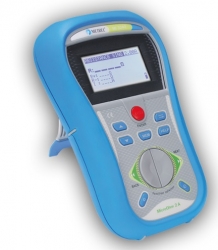

METREL MI3242 PORTABLE LOW RESISTANCE MICROOHMMETER 2A
