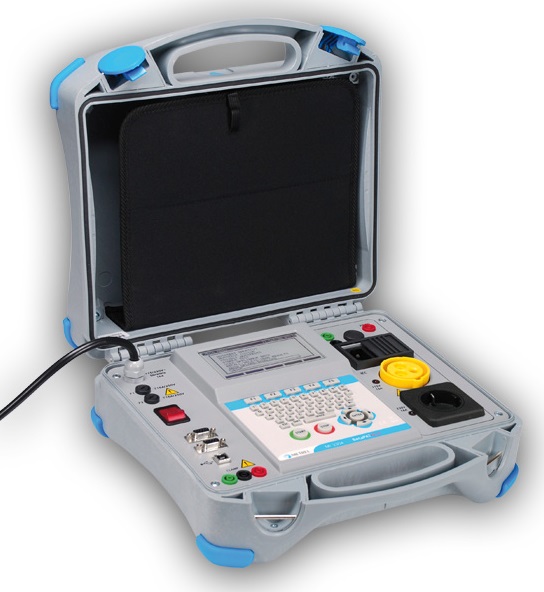

Metrel MI3304 BETAGT PLUS Electrosecurity Safety Analyzer for Portable Equipments cf. IEC EN VDE standard

Code: Metrel MI3304 MI-3304 BETAGT-PLUS




Datasheet PDF, 0.59 Mb


Description

The innovative MI 3304 BetaGT Plus is a highclass instrument intended for electrical safety testing of a wide range of portable electrical appliances, IT equipment, IEC cords and portable RCDs according to IEC/EN and VDE standards.



MEASURING FUNCTIONS

  • Continuity tests (200 mA, 4 A, 10 A, 25 A).
  • Insulation resistance.
  • Substitute leakage current.
  • Differential leakage current.
  • Touch leakage current.
  • IEC cord polarity test.
  • Leakage and load TRMS current measurement with current clamp.
  • Portable RCD testing.
  • HV Flash test.
  • Functional test.



OTHER FEATURES

  • Autosequencing: 24 pre-set autosequences and custom prepared autosequences speed up testing and ensure that no tests are missed.
  • Automated: automatic testing and PASS / FAIL evaluation of test results according to appropriate standard.
  • Project uploading: previous test data can be uploaded for fast retesting of the appliance.
  • Scan and test: optional barcoding sys-tem and PASS / FAIL barcode label printing make retesting quick and simple.
  • RFID: support for advanced RFID identification system.
  • Adaptable: tests both 230 V and 115 V appliances.
  • User friendly: large LCD screen, full QWERTY keyboard, help screens and warnings make the instrument an extremely easy to use.
  • Multitasking: instrument performs continuity tests with different test currents, 250 V and 500 V insulation tests, differential /substitute / touch leakage mesure-ments, functioanal and polarity tests.
  • PRCD testing: instrument enables measurement of tripout time of portable RCDs.
  • Clamp leakage current measurement: quick measurement of leakage current with current clamps directly on power supply cable without discon-nection of appliance from mains.
  • Trend functionality: test results can be uploaded from PC to the instrument for comparison between old and new test results onsite.
  • Downloadable: up to 6500 test results with measuring parameters can be stored in two level memory and downloaded to the PC with the help of PC SW PAT Link PRO.
  • PC SW PAT Link PRO included in the standard set enables downloading, viewing, printing of test results and exporting of data to spreadsheet applications.
  • PC SW PAT Link PRO Plus enables advanced analysis of test results, data upload to the instrument for on site comparison of old and new results and creation of professional test reports.



SOFTWARE

  • PC SW PAT Link PRO included in the standard set enables downloading, view-ing, printing of test results and exporting of data to spreadsheet applications.
  • PC SW PAT Link PRO Plus enables ad-vanced analysis of test results, data upload to the instrument for on site comparison of old and new results and creation of professional test reports.



TECHNICAL DATA

Dimensions (w x h x l): 335 x 160 x 335 mm

Mass (without accessories): 8.4 kg

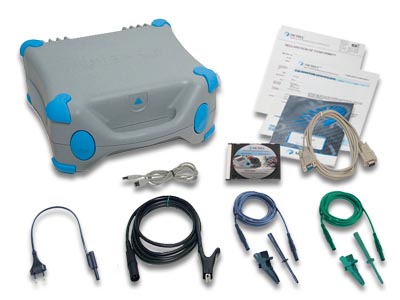

Standard accessories

MI 3304 Standard set MI 3304

  • Instrument BetaGT Plus
  • Continuity / Leakage cable PRCD cable
  • PC SW PATLink PRO
  • RS232 cable
  • USB cable
  • Crocodile clip, green
  • Crocodile clip, black
  • Test probe, green
  • Test probe, black
  • Test lead, green 1.5 m
  • Test lead, black 1.5 mI
  • nstruction manual
  • Calibration certificate
