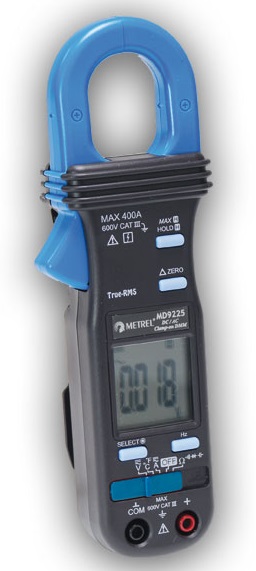

Usual Universal Current Clamp Meter Metrel MD 9225

Code: Metrel MD 9225




Datasheet PDF, 0.24 Mb


Description

The MD 9225 is a versatile current clamp meter with perfect combination of size and built-in functions. It measures AC/DC current and voltage, capacitance, temperature, full range resistance and captures In-rush current. Display with large easy-to-read figures and one-handed operation make MD 9225 an extremely easy-to-use. This compact instrument combines a high level of functionality, small size and portability. All built-in features make MD 9225 a perfect tool for advanced applications.



TEST FUNCTIONS

  • TRMS AC, DC voltage measurement;
  • TRMS AC, DC current measurement;
  • Capacitance measurement;
  • Resistance measurement;
  • Diode test;
  • Frequency measurement;
  • Continuity test (acoustic signaling);
  • Temperature measurement.



TECHNICAL DATA

Dimensions (w x h x l): 63 x 40 x 188 mm

Mass (without accessories): 218 g





Standard accessories

MD 9225 Standard set

  • Current clamp MD 9225
  • Test lead with probe, 2 pcs
  • Thermocouple probe, type K
  • Pouch
  • 1.5 V battery, type AAA, 2 pcs
  • Instruction manual
  • Warranty
