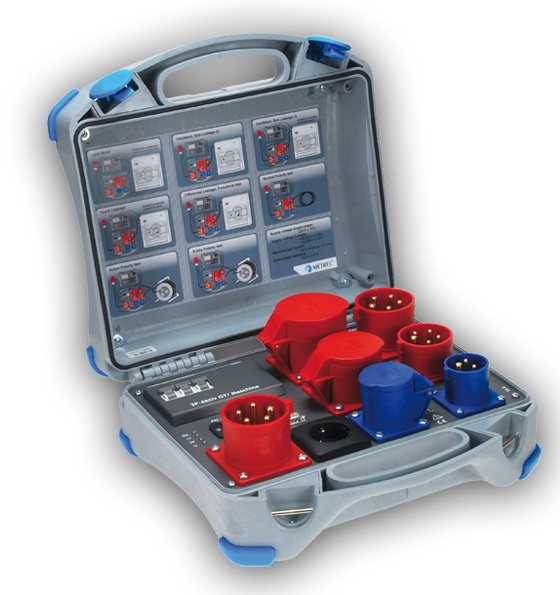

Metrel’s all new A 1322 Multifunctional test adapter is designed for troubleshooting, as well as for periodic testing on 3-phase appliances and machinery. Unique functions such as, active polarity testing, differential leakage testing and testing of 3-phase RCD’s make the A 1322 Active 3-phase Adapter an ideal instrument for advanced applications. The A 1322 adapter is designed for use alongside the MI 3321 MultiservicerXA and the MI 3310/MI 3310A SigmaGT enabling functional tests to be carried out on machines up to 40 A. Several test socket outlets make this instrument an ideal tester for testing industrial extension leads that may also be RCD protected.
Due to the powerful test data management included with both supporting test instruments, all test data can easily be equipped with needed parameters. This data can be stored into the large memory included, and with the support of the powerful data management system PC SW Patlink Pro, exported as professional test reports.

OTHER FEATURES

All tests on 3-phase electrical equipment can be carried out, including live leakage test, power, polarity, RCD and Active polarity.
Simple connection to the PAT/MACHINE tester with automatic detection.
Simple test procedures, identical to single phase equipment.
Test sequence for 3-phase tests are automatically set, based on entered test codes and input voltages.
Built-in CEE 3-phase/32 A 5-pin, CEE 3-phase/16 A 5-pin and CEE 1-phase/16 A 3-pin test sockets.
Instrument comes complete with all accessories necessary for comfortable measurements and kept in a robust waterproof case.

TECHNICAL DATA

Dimensions (w x h x l): 335 x 160 x 335 mm

Mass (without accessories): 7.2 kg

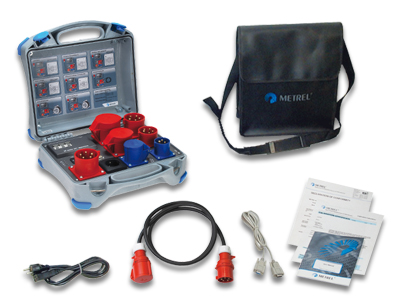

Standard accessories

A 1322 Standard setA 1322

Instrument A 1322
Bag for accessories
Measuring / Connection cable betwen Adapter and Instrument
3-phase mains cable 16 A male / 32 A female, 5-pin, 2 m
RS232 cable
Instruction manual
Short instruction manual
Calibration certificate
