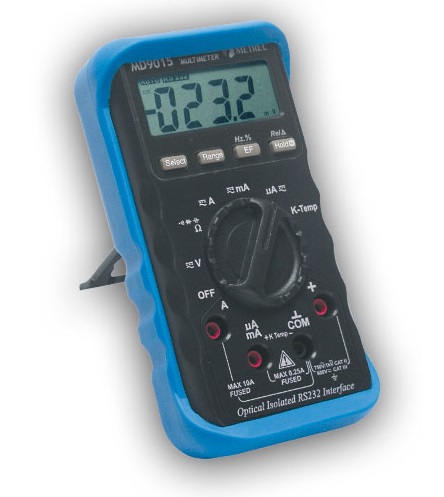

Metrel MD9015 Electrician Handheld Multimeter MD-9015

Code: Metrel MD9015 MD-9015




Datasheet PDF, 0.29 Mb


Description

The digital multimeter MD 9015 includes all the functions needed to detect most electrical and electrotechnical problems. Offering one-handed operation and a display with large, easily-read figures, this compact instrument represents outstanding value for money.



TEST FUNCTIONS

  • AC voltage up to 750 V, DC voltage up to 1000 V
  • DC and AC current measurement up to 10 A
  • Diode test
  • Resistance measurement
  • Continuity test
  • Frequency measurement
  • Capacitance measurement
  • Temperature measurement



TECHNICAL DATA

Dimensions (w x h x l): 75 x 34 x 150 mm

Mass (without accessories): 345 g





Standard accessories

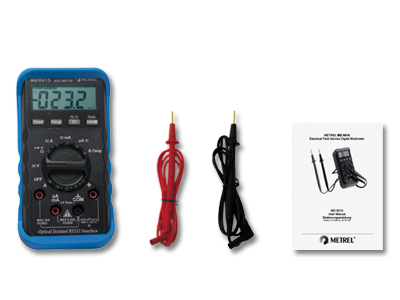

MD 9015 Standard set

  • Multimeter MD 9015 with rubber holster
  • Test lead with probe, 2 pcs
  • 1.5 V battery, type AAA, 2 pcs
  • Instruction manual
  • Warranty
