Metrel MI2093 LINE TRACER Fuse Finding Installation Tester for under-wall cables

Code: Metrel MI2093 MI-2093 LINE-TRACER




Datasheet PDF, 1 Mb


Description

Field proven instrument for under-wall low voltage installation tracing, fuse finding, short-circuit spot determination and metal installation tracing. Accurate fuse locating



MEASURING FUNCTIONS

  • Can be used on energized or voltage-free systems.
  • Tips and detailed descriptions of connection schemes for various  combinations from everyday practice.



TECHNICAL DATA

Warranty: 1 year

Dimensions (w x h x l):

  • transmitter: 100 x 50 x 200 mm
  • receiver: 45 x 45 x 210 mm

Mass (without accessories):

  • transmitter: 0,3 kg
  • receiver: 0.15 kg


Standard accessories

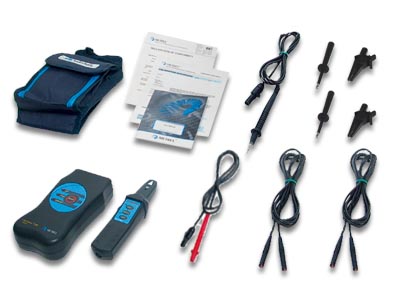

MI 2093 Standard set MI 2093

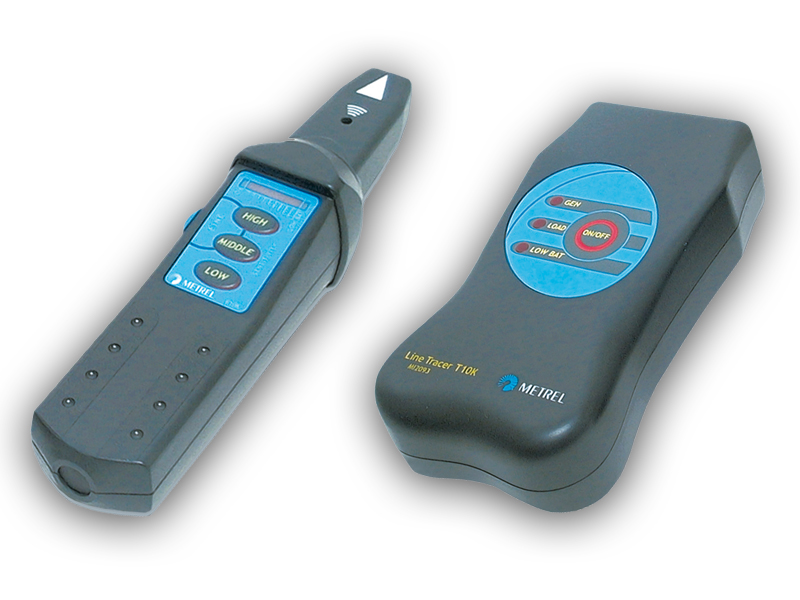

  • Transmitter T10K
  • Receiver R10K
  • Test lead for R10K with built-in resistor and test probe, 1.5 m
  • Test lead for T10K, 1.5 m, 2 pcs
  • Special selective probe
  • Test probe, black, 2 pcs
  • Crocodile clip, black, 2 pcs
  • Soft carrying bag
  • Instruction manual
