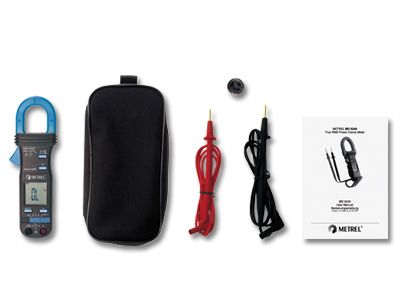

Low Cost Universal Current Clamp Meter Metrel MD 9210

• DC and TRMS AC voltage up to 600 V
• DC and TRMS AC current measurement up to 1000 A and 800 A respectively
• Resistance measurement
• Continuity test
• Diode test
• Capacitance measurement



• Both IP (inductive) & IG (contact) RPM;
• ms Fuel-injection on time;
• % Duty cycle;
• Dwell angle;
• 1000V TRMS AC, DC voltage measurement;
• 10A TRMS AC, DC current measurement;
• 6uF..2mF Capacitance measurement;
• 600O..60MO Resistance measurement;
• Electric field detection;
• Temperature measurement(thermocouple type K included)



• All tests on 3-phase electrical equipment can be carried out, including live leakage test, power, polarity, RCD and Active polarity.
• Simple connection to the PAT/MACHINE tester with automatic detection.
• Simple test procedures, identical to single phase equipment.
• Test sequence for 3-phase tests are automatically set, based on entered test codes and input voltages.



• PAT Demoboard is intended for demonstration of electrical equipment safety management.
• Presentation of safety management of electrical equipment in seminars, courses.
• Presentation of typical safety problems on electrical equipment.
• Practical demonstration of measuring instruments (performing tests, making right connections, analysing measured results).
• Continuity of equipotential bonding
• Insulation resistance
• Leakage current
• Touch leakage current
• Polarity of cables
• Functional operation



• easy to use LAN tester with wide variety of functions for fault finding
• troubleshooting on IT cabling connections
• TDR facility with adjustable NVP
• determination of distance to the fault
• cable length measurement
• pair determination in multi-pair cables
• crossed pairs,
• crosstalk,
• short-circuit,
• mismatched pairs,
• bad contacts,
• no shield etc..



• 1000V AC, DC voltage measurement;
• 8A AC, DC current measurement;
• 600O..60MO Resistance measurement;
• 60nF..3mF Capacitance measurement;
• 5Hz..1MHz Frequency Measurement
• Temperature measurement(thermocouple type K included)



• Supports all types of earthing resistance measurements:
• - Standard earthing resistance measurement with spikes
• - Selective earthing resistance test with one current clamp
• - Selective (contactless) earthing resistance with two current clamps
• - Specific earth resistance measurement
• Leakage current tests with current clamps
• Load current tests with current clamps
• High accuracy, very high immunity against external noise
• Preprogrammed limits



• Field proven instrument for under-wall low voltage installation tracing
• fuse finding
• short-circuit spot determination and metal installation tracing
• Can be used on energized or voltage-free systems.
• Tips and detailed descriptions of connection schemes for various combinations from everyday practice.



• Earth bond / continuity resistance (200 mA, 10 A)
• Insulation resistance
• Insulation resistance of isolated accessible conductive parts
• Substitute leakage current
• Substitute leakage current of isolated accessible conductive parts
• Differential leakage current
• Touch leakage current
• IEC cord polarity test



• Bidirectional resistance measurement from 0,1 µO up to 2000 O
• test current up to 10 A
• Highly efficient 10 A current source generates 10 A into 200 mO load for 15 min without overheating
• High overvoltage protection (CAT IV / 300 V)
• Custom limits can be set for PASS / FAIL evaluation of test result.
• 50 Hz / 60 Hz ripple detection and rejection.
• Instrument can be powered from mains or internal rechargeable battery.
• Up to 1000 test results with timestamp can be stored in internal memory.
• PC SW HVLink PRO enables downloading, review, analyses and printing of test results.
