Brand: Hameg

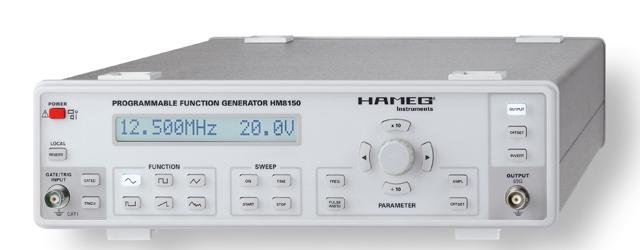

Arbitrary Function Generator 12.5 MHz Hameg HM8150

Code: Hameg HM8150




Datasheet PDF, 0.49 Mb

Description

  • Frequency Range 10mHz…12.5MHz
  • Output Voltage 10mVpp…10Vpp (into 50O)
  • Waveforms: Sine Wave, Square Wave, Triangle, Pulse, Sawtooth, Arbitrary
  • Rise and Fall Time <10ns
  • Pulsewidth Adjustment: 100ns…80s
  • Arbitrary Waveform Generator 40MSa/s
  • Burst, Gating, External Triggering, Sweep
  • Software for Remote Control and for Creation of Arbitrary Waveforms
  • External Amplitude Modulation (Bandwidth 20 kHz)
  • Intuitive Operation with one touch of a Button - quick Change of Signals
  • Galvanically isolated USB/RS-232 Interface, optional IEEE-488 (GPIB)


Standard accessories

  • Line cord
  • Operating manual
  • software


Recommended options

  • HO880 IEEE-488 (GPIB) Interface (galvanically isolated)
  • HZ13 Interface cable (USB) 1.8 m
  • HZ14 Interface cable (serial) 1:1
  • HZ20 Adapter, BNC to 4 mm banana
  • HZ24 Attenuator Set 50 O (3/6/10/20 dB)
  • HZ33 Test Cable 50 O (BNC-BNC) 0.5 m
  • HZ34 Test Cable 50 O (BNC-BNC) 1.0 m
  • HZ42 19’’ Rackmount kit 2RU
  • HZ72 GPIB-Cable 2 m
