Brand: Hameg

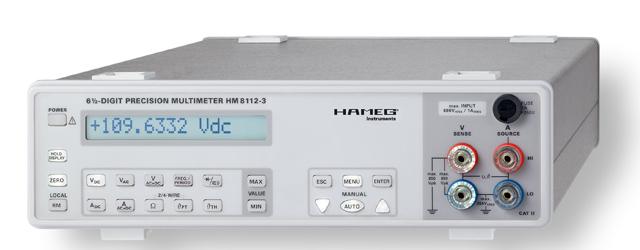

Digital Precision Multimeter 6.5 digit Hameg HM8112-3

Code: Hameg HM8112-3




Datasheet PDF, 0.41 Mb

Description

  • 6½-Digit Display (1,200,000 Counts)
  • Resolution: 100 nV, 100 pA, 100 µO, 0.01 °C/F
  • DC Basic Accuracy 0.003 %
  • 2-Wire/4-Wire Measurements
  • Measurement Intervals adjustable from 0.1…60 s
  • Up to 100 Measurements transmitted to PC per Second
  • True RMS Measurement, AC and DC+AC
  • Mathematic Functions: Limit Testing, Minimum/Maximum, Average and Offset
  • Temperature Measurements with Platinum (PT100/PT1000) and Ni (K and J types) Sensors
  • Internal Data Logger for up to 32,000 Measurement Results
  • Offset Correction
  • Galvanically isolated USB/RS-232 Interface, optional IEEE-488 (GPIB)
  • Optional: Scanner Card (8+1 Channels each 2- and 4-Wire)


Standard accessories

  • Line cord
  • Operating manual
  • PVC test lead (HZ15)
  • Interface cable (HZ14)


Recommended options

  • HO112 Scanner Card (Installation only ex factory) as HM8112-3S
  • HO880 IEEE-488 (GPIB) Interface (galvanically isolated)
  • HZ10S 5 x Silicone test lead black
  • HZ10R 5 x Silicone test lead red
  • HZ10B 5 x Silicone test lead blue
  • HZ13 Interface cable (USB) 1.8 m
  • HZ33 Test cable 50 O, BNC/BNC, 0.5 m
  • HZ34 Test cable 50 O, BNC/BNC, 1 m
  • HZ42 19" Rackmount kit 2RU
  • HZ72 GPIB-Cable 2 m
  • HZ887 Temperature probe
