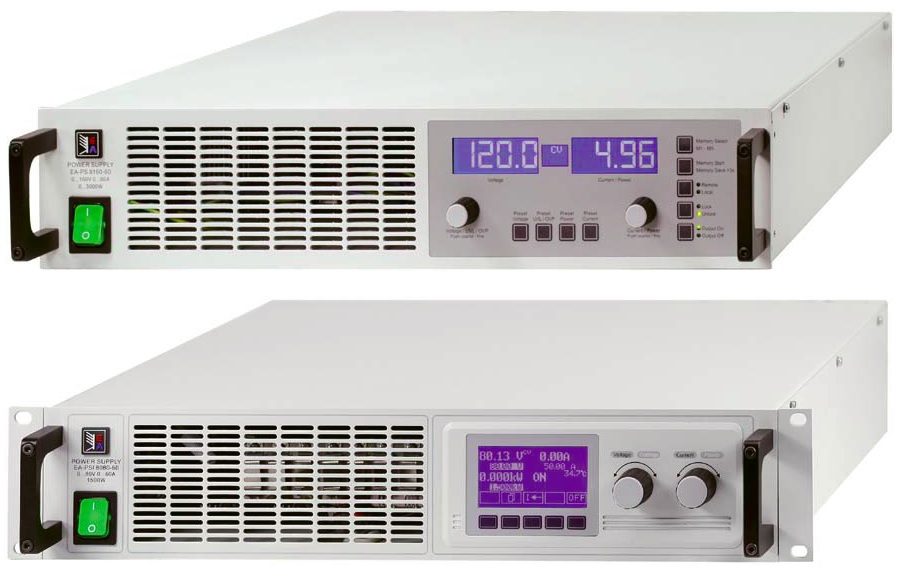

The HEA-PS-8000-2U seriesare unitswith output voltages from32V up to 720V,currents between 4Aand 120A and performance from 600W to 3000W.The output is located in the 2U models on the back.

Wide-range input and active PFC
Operating modes: CV, CC and CP from 1 kW
OVP and OTP
programmable, remote-controlled
exchangeable interface boards as IEEE488, RS-232, USB, CAN, Profibus and LAN on request

Order Number	Voltage (V)	Current (A)	Power(kW)
HEA-PS8032-20U2	0 � 32 V	0 � 20 A	0,6
HEA-PS8065-10U2	0 � 65 V	0 � 10 A	0,6
HEA-PS8160-04U2	0 � 160 V	0 � 4 A	0,6
HEA-PS8080-40U2	0 � 80 V	0 � 40 A	1
HEA-PS8040-60U2	0 � 40 V	0 � 60 A	1,5
HEA-PS8080-60U2	0 � 80 V	0 � 60 A	1,5
HEA-PS8360-15U2	0 � 360 V	0 � 15 A	1,5
HEA-PS8040-120U2	0 � 120 V	0 � 120 A	3
HEA-PS8080-120U2	0 � 80 V	0 � 120 A	3
HEA-PS8160-60U2	0 � 160 V	0 � 60 A	3
HEA-PS8360-30U2	0 � 360 V	0 � 30 A	3
HEA-PS8720-15U2	0 � 720 V	0 � 15 A	3

Recommended options

Options	Descriptions
HEA-PS-IF-CAN	CAN Interface
HEA-PS-IF-LAN	LAN Interface
HEA-PS-IF-GPIB	GPIB/IEEE Interface
HEA-PS-IF-PB	Profibus Interface
HEA-PS-IF-RS232	RS232 Interface
HEA-PS-IF-USB	USB Interface
HEA-PS-HS	High Speed
HEA-PS-ZH	Active Loadmodul
