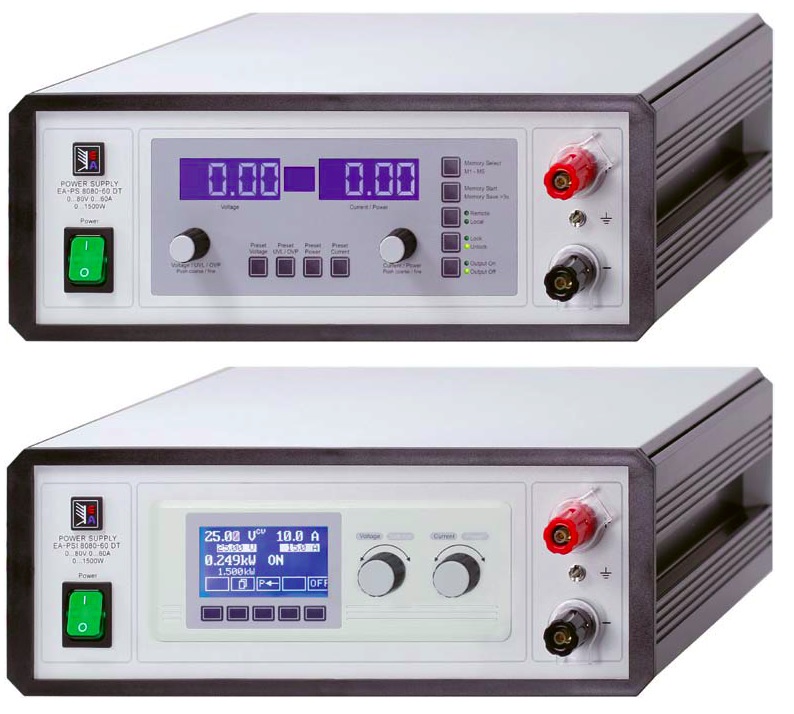

The HEA-8000 DT-PS series includes devices with output voltages from 16V to 360V, currents from 4A to 60A and power from 320W to 1500W. The output is at the DT-models on the front side of the devices.

Wide-range input with PFC
Operating modes: CV, CC and CP from 1 kW
programmable, remote-controlled
various interfaces

Order Number	Voltage(V)	Current(A)	Power(kW)
HEA-PS8016-20DT	0 � 16 V	0 � 20 A	0,3
HEA-PS8032-10DT	0 � 32 V	0 � 10 A	0,3
HEA-PS8065-05DT	0 � 65 V	0 � 5 A	0,3
HEA-PS8032-20DT	0 � 32 V	0 � 20 A	0,6
HEA-PS8065-10DT	0 � 65 V	0 � 10 A	0,6
HEA-PS8160-04DT	0 � 160 V	0 � 4 A	0,6
HEA-PS8080-40DT	0 � 80 V	0 � 40 A	1
HEA-PS8360-10DT	0 � 360 V	0 � 10 A	1
HEA-PS8080-60DT	0 � 80 V	0 � 60 A	1,5
HEA-PS8360-15DT	0 � 360 V	0 � 15 A	1,5

Recommended options

Options	Description
HEA-PS-IF-CAN	CAN Interface
HEA-PS-IF-LAN	LAN Interface
HEA-PS-IF-GPIB	GPIB/IEEE Interface
HEA-PS-IF-PB	Profibus Interface
HEA-PS-IF-RS232	RS232 Interface
HEA-PS-IF-USB	USB Interface
HEA-PS8-GriffT	carrying handle
HEA-PS-HS	High Speed
