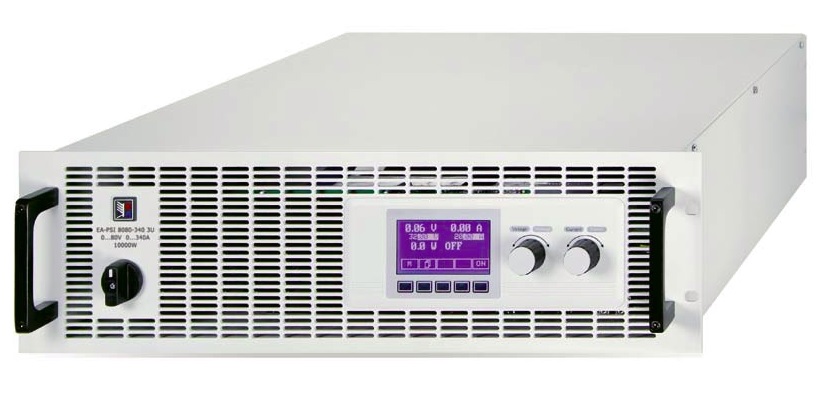

The NEW HEA PS-8000 3U series is available of output voltages from 40V to 1500V, current from 30A to 510A (expandable to 5100A) and Performance from 3.3 kW to 15 kW (expandable up to 150KW). The 40V versions comply with the SELV.

Wide-range input and active PFC
Operating modes: CV, CC and CP from 1 kW
OVP and OTP
programmable, remote-controlled exchangeable interface boards as IEEE488, RS-232, USB, CAN, Profibus and LAN

Order Number	Voltage (V)	Current (A)	kW
HEA-PSI81000-30U3 HS PV (Photovoltaik)	0 � 1000 V	0 � 30 A	10
HEA-PSI8600-70U3 HS PV (Photovoltaik)	0 � 600 V	0 � 70 A	15
HEA-PSI81500-30U3 HS PV (Photovoltaik)	0 � 1500 V	0 � 30 A	15

Recommended options

Options	Description
HEA-PS-IF-CAN	CAN Interface
HEA-PS-IF-LAN	LAN Interface
HEA-PS-IF-GPIB	GPIB/IEEE Interface
HEA-PS-IF-PB	Profibus Interface
HEA-PS-IF-RS232	RS232 Interface
HEA-PS-IF-USB	USB Interface
HEA-PS-HS	High Speed
Wasserkühlung	water cooled
