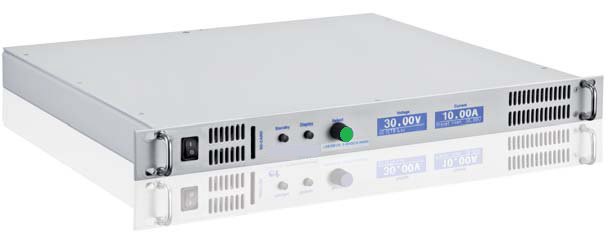

Very compact design and excellent performance. The NEW HE-LAB/SMP series is as 1.2 and 2.4 kW version available. Expandable with the master-slave option up to 24 kW.

Efficiency up to 94 %
Compact Design
Active and Parallel connectable
Easiest operation via front panel
Constant Current, Voltage, Resistance and Power Operation
Randomly programmable Memory Locations for U/I waves
UI, UIP, UIR Mode, Simulation of PV-Arrays
Script Control: process programming and booting from memory card
Creating user defined output characteristics via memory card or digital interface
Digital Interfaces IEEE 488, RS232/485, USB and LAN (optional)
Galvanically isolated Analogue Interface 0 - 5 V or 0 - 10 V (user selectable; optional)
Storable U/I wave forms (e.g. for PV simulation and sequential control)
Graphical Display
Special version on request
Datalog function: operation values can be saved in an adjustable interval to a memory card
Script operation in combination with Datalog function allows an independent stand-alone test
field setup
Umax and Imax randomly selectable to limit maximum output voltage and current

Order Number	Power(W)	Voltage (V)	Current (A)	Dimensions
HE-LAB/SMP 115	1.200	0 - 15	80	19" x 1 U x 440 mm
HE-LAB/SMP 135	1.200	0 - 35	35	19" x 1 U x 440 mm
HE-LAB/SMP 145	1.200	0 - 45	30	19" x 1 U x 440 mm
HE-LAB/SMP 170	1.200	0 - 70	20	19" x 1 U x 440 mm
HE-LAB/SMP 1150	1.200	0 - 150	8	19" x 1 U x 440 mm
HE-LAB/SMP 1300	1.200	0 - 300	4	19" x 1 U x 440 mm
HE-LAB/SMP 1600	1.200	0 - 600	2	19" x 1 U x 440 mm
HE-LAB/SMP 215	2.400	0 - 15	160	19" x 1 U x 440 mm
HE-LAB/SMP 235	2.400	0 - 35	105	19" x 1 U x 440 mm
HE-LAB/SMP 245	2.400	0 - 45	90	19" x 1 U x 440 mm
HE-LAB/SMP 270	2.400	0 - 70	60	19" x 1 U x 440 mm
HE-LAB/SMP 2150	2.400	0 - 150	24	19" x 1 U x 440 mm
HE-LAB/SMP 2300	2.400	0 - 300	12	19" x 1 U x 440 mm
HE-LAB/SMP 2600	2.400	0 - 600	6	19" x 1 U x 440 mm

Recommended options

Options	Description
../WI	Input 90 - 264 VAC
../230	Input 110-126 VAC
../230	Input 230 / 207 - 253 VAC
../3P400	Input 3 x 400 / 360 - 440 VAC
../3P440	Input 3 x 440 / 396 - 484 VAC
../3P480	Input 3 x 480 / 432 - 528 VAC
../400Hz	Input 400Hz
../DC	Input 250 - 750VDC
../ATE	Only ATE mode, no frontpanel
../ATI5/10	Isolated analogue interface 0 - 5 / 0 - 10 VDC set and monitor
../LT	Interface IEEE488
../LTRS485	Interface RS485
../LTRS232	Interface RS232
../LAN	Interface LAN
../USB	Interface USB
../KFZ12	Car starting curve 12 VDC
../KFZ24	Car starting curve 24 VDC
../OPT	Output characteristics
../SD	SD Card Slot
../M-S	Master-Slave Option for max. 20 kW
