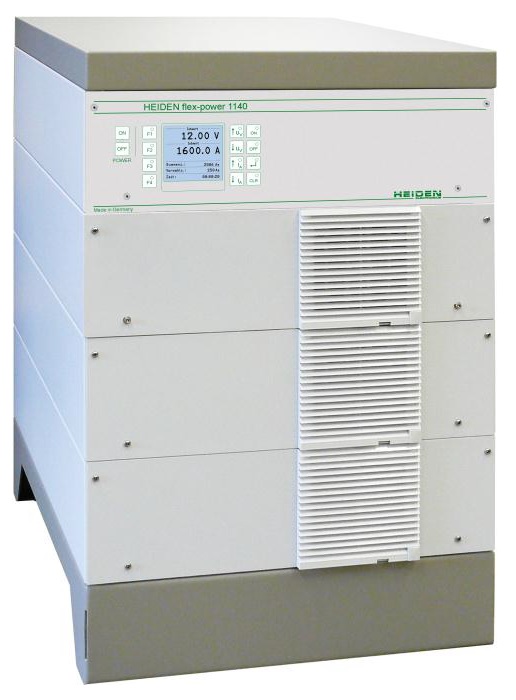

The NEW Flex Power is a modular system, in which voltage from 6 to 30V up to 6000A are constantly expanded through moduls. The modular design performance and power are always expandable.

Absolut NEW - FLEX POWER

Modular power
at any time, can be enhanced
Digital control
extensive interfaces: analog, RS-484, RS-485, TCP / IP, Profibus
novel encapsulated air cooling system
individual voltages on request

By extending the individual segments can be realized following power outputs:

Flex	1	2	3	4	5	6	7	8	9	10
6 V	600 A	1200 A	1800 A	2400 A	3000 A	3600 A	4200 A	4800 A	5400 A	6000 A
10 V	560 A	1120 A	1680 A	2240 A	2800 A	3360 A	3920 A	4480 A	5040 A	5600 A
16 V	500 A	1000 A	1500 A	2000 A	2500 A	3000 A	3500 A	4000 A	4500 A	5000 A
20 V	400 A	800 A	1200 A	1600 A	2000 A	2400 A	2800 A	3200 A	3600 A	4000 A
30 V	300 A	600 A	900 A	1200 A	1500 A	1800 A	2100 A	2400 A	2700 A	3000 A
Height mm	475	625	775	925	1075	1225	1375	1525	1675	1825
