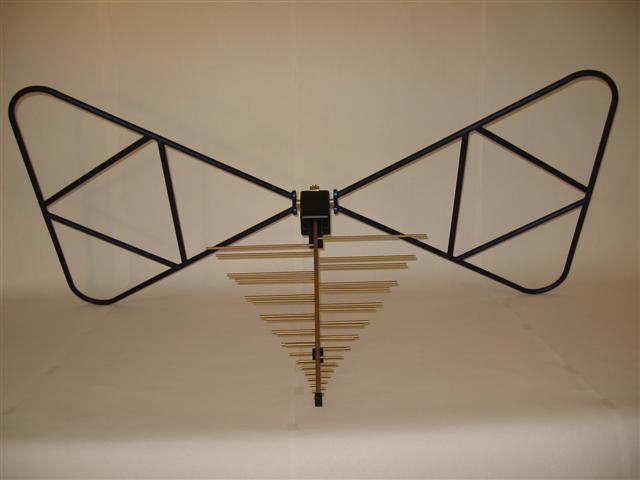

Frequency Range: 20 MHz to 6 GHz
Gain: 6 dBi typical
VSWR: 2:1 average
Polarization: Linear
Power Handling: 100 W
Input Impedance: 50 ohms nominal
Efficient design especially suited for compact chambers
Lightest antenna in its class (4.8 lbs)
Highest frequency range for an antenna in its class
Excellent low frequency response
Unique internal balun provides balance even under adverse conditions
Moderate power handling capability
Individually calibrated according to ANSI C63.5, with signed certificate of calibration
Immunity and Emissions testing
Anechoic chamber, OATS, in situ testing
